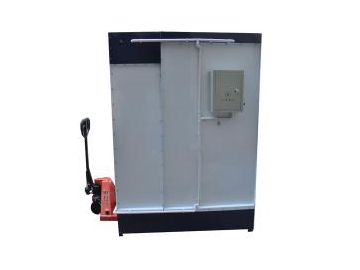

Powder Coating Cabinet
Type of powder coating booth: Closed
Model of manual spray booth with jet cleaning: colo-1181
This spray booth is suitable for the coating of individual parts or small parts and is equipped with the basic functions required for a cost-effective system. It meets the technical requirements specified by CE.
Including
Main body of spray booth

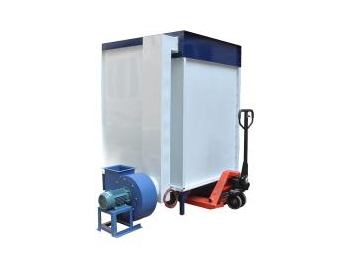

Fan, not installed

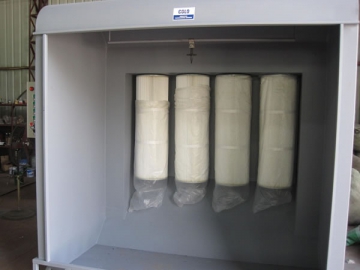

Two filter cartridges, not installed
Technical data
Inside dimension: 1000 width x 1800 height x 1000 depth (the size can also be 1000 width x 1300 height x 1000 depth)
Outside dimension: 1080 width x 2500 height x 1500 depth
Heat source: Electricity
Nominal power: 2.2kW
Voltage: 380V /415/220 V as request
Frequency: 50-60Hz
Filter cartridge: Polyester
Filter cartridge quantity: 2pcs (325*1200mm)
Filter cartridge hanging type: Fast disassembly, easy on/off
Filter cartridge area: 20m2
Filter cartridge cleaning system: Pneumatic - injection nozzle
Air consumption 3400m3/h
Warranty 12 months
