We can provide all the related machines for producing wheel rims, such as rim bending machine, rim butt welding machine, rim trimming machine, rim rolling machine, and so on.
- 500T Vertical Hydraulic Press for Expansion Forming
- Flash Butt Welding Machine
- JY-600 Rounding Machine with Marking and Flattening Units
- Roll Forming Machine
500T Vertical Hydraulic Press for Expansion Forming
The machine adopts an independent hydraulic system and electrical control system and is built with a three-beam, four-column structure. The hydraulic system uses an integrated cartridge valve design, featuring low impact, reliable operation, long service life, and minimal leakage.
Technical Data
- Nominal pressure5000kN
- Max. working pressure25MPa
- Max. slider stroke1000mm
- Max. open height2000mm
- Working bench size2000 x 1600mm (L x W)
- Sliding speed (Down)150mm/s
- Sliding speed (Pressing) 4-10mm/s
- Sliding speed (Return) 120mm/s
- Power44kW
- Machine dimensions5000 x 2000 x 5650mm

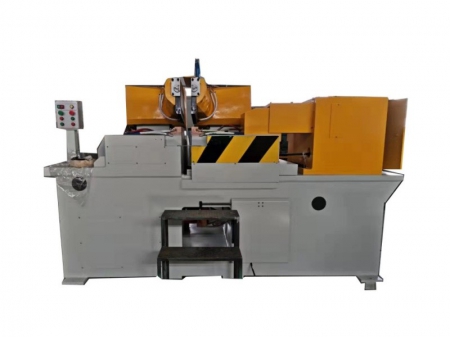

SGH-1250 Flash Butt Welding Machine
Features
- The machine features an automatic cleaning function for removing welding slag from both the electrode surface and the sides of the electrode jaws.
- It adopts a manually assisted feeding and unloading method.
- It is equipped with quick-change tooling. The electrodes and jaws are clamped by hydraulic or similar mechanisms, enabling rapid replacement.
- It includes a welding-parameter monitoring system capable of generating curves/data tables for parameters such as welding displacement, pressure, and energy. These curves and data records can be recalled and reviewed at any time.
- It can automatically adjust the electrode height, and the jaw clamping force is adaptively and evenly applied to the electrode to achieve accurate surface correction.
- It is equipped with fully enclosed welding-splash protection to prevent operator burns, along with a fire-resistant fume-collection hood.
- Welding slag generated during the process is contained within an enclosed protective cover and cleaned regularly to ensure operator safety. A rear access door on the protective cover allows workers to easily remove slag and perform maintenance.
Technical Data
- Rated power1250kVA
- Welding area300-4200mm²
- Max. welding width150-600mm
- Welding rim diameter18-28in
- Welding working speed5-30 mm/s
- Upsetting speed≥60mm/s
- Welding stroke/electrode spacing4-80mm
- Clamp opening stroke20-60mm
- Pulsation frequency≤10Hz
- Material thickness range2.3mm-9mm
- Rated clamping force200-650kN
- Rated upsetting force100-350kN
- Lubrication systemCentralized lubrication
- Transformer tap positions6
- Transformer temporary load rate60%
- Secondary no-load voltage5-16V
- Scrap rate≤0.5%
- Welding speed12s/pc
JY-600 Rounding Machine with Marking and Flattening Units
This machine is used to roll steel plates for pre-forming rims.
This machine is horizontal structure with rounding, mark stamping and flattening function.
Technical Data (for 18-28in rim)
- Total power16.525kW
- Output15-20s/pc
- Rated voltageAC 380V, 50Hz
- Cooling methodForced-air cooling (fan)
- Effective volume for oil tank200L
- Reaching-out speed1300mm/s (adjustable)
- Retracting speed1500mm/s (adjustable)
- Rated pressure1.5MPa
- Rated flow150ml/min
- Rated volume4L
- Raw material length1250mm-2400mm
- Raw material width150mm-500mm
- Raw material thickness2.3mm-8.5mm
- Material tensile strength540-650Mpa
- Yield strength for materials≥450MPa
- Rated speed1500rpm
- Rotary speed 1450rpm
- Fast forward (Max. working pressure)4Mpa
- Fast forward (Max. working flow)70L/min
- Fast forward (Max. cylinder extending speed)36 mm/s (adjustable)
- Fast forward (Max. thrust output)12.5T
- Sheet feeding (Max. working pressure)16MPa
- Sheet feeding (Max. working flow)18L/min
- Sheet feeding (Max. cylinder extending speed)9.5mm/s (non-adjustable)
- Sheet feeding (Max. thrust output)50.2T
- Fast backward (Max. working pressure)4Mpa
- Fast backward (Max. working flow)70 L/min
- Fast backward (Max. retracting speed)55mm/s (adjustable)
- Fast backward (Max. reaching out)7.5T

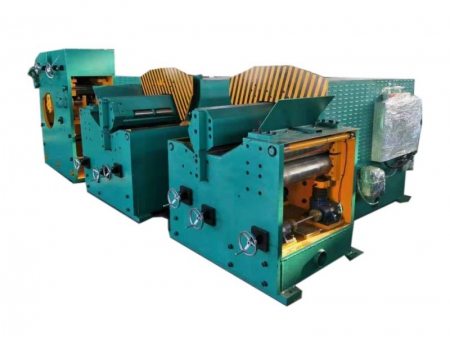

Roll Forming Machine
The roll forming machine is specifically designed to form flared rims into their final profile. In standard production, three identical units fitted with different forming rollers are required to complete the full forming process. The system is composed of the machine frame, support bracket, hydraulic system, pneumatic system, and electrical control system.
Technical Data
| Item | Data | ||
| Total power | 85.025 kW | ||
| Output | 12-18 seconds/pc | ||
| Main spindle parameters | Roll forming force | 230 kN | |
| Spindle torque | 900 N.m | ||
| Mold installation length | 600 mm | ||
| Mold installation diameter | 200 mm (key width: 32 mm) | ||
| Rotary speed for upper & lower spindle | 130rpm( adjustable) | ||
| Distance between upper and lower spindle centers | 340-520 mm | ||
| Radial runout of upper and lower rollers | ≤0.05 mm | ||
| Material parameters | Material tensile strength | 540-650 Mpa | |
| Rim diameter range | 18-28 inch | ||
| Yield strength | ≥ 450 Mpa | ||
| Hydraulic system | Motor voltage | AC 380 V, 50 Hz | |
| Rotary speed | 1450 rpm | ||
| Lifting cylinder | Max. working pressure | 16Mpa | |
| Max. working flow | 90L/min | ||
| Max. extension speed | 60 mm/s (adjustable) | ||
| Max. total output thrust | 40 T | ||
| Cooling method | Air cooling | ||
| Solenoid valve voltage | DC 24 V | ||
| Effective oil tank volume | 300 L | ||
| Pneumatic system | Air compressor (provided by buyer) | Pressure: ≥0.6 Mpa Degassing capacity: ≥100 L/min | |
| Max. cylinder extension speed | 300 mm/s (adjustable) | ||
| Max. cylinder retracting speed | 500 mm/s (adjustable) | ||
| Pushing & guiding cylinder thrust @ 0.6 MPa | 0.74 T | ||
| Pushing & guiding cylinder force @ 0.6 MPa | 0.43T | ||
| Lubrication system | Rated voltage | AC 220 V,50Hz | |
| Rated pressure | 1.5 MPa | ||
| Rated flow | 150 ml/min | ||
| Rated volume | 4 L | ||
