Condenser Coil Bending Machine

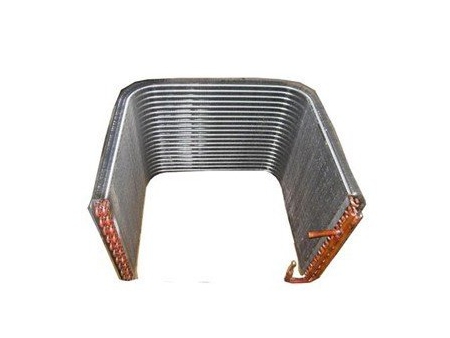

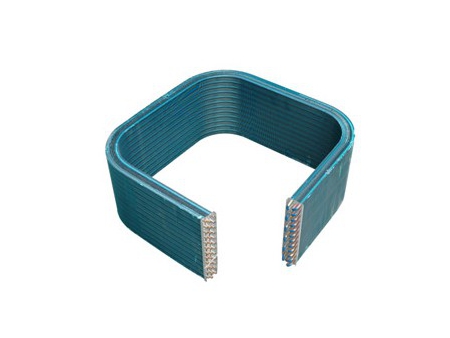

This condenser coil bending machine is specially designed for bending condenser coil of air conditioner to L, U, or G shape automatically.
This machine is PLC control, servo motor driving, HMI presetting related parameters, simple & convenient operation.
Main Features
- Bending mechanism is driving by inverter motor, stable working
- Worktable is elevated, inverter motor driving, stable and noiseless
- Worktable has one following trolley for related compensating motion, good non-deformability
- Motion section is equipped with protection mesh, good safety
Except for this condenser coil bending machine, we also have coil bender for microchannel tube & fin type condenser coil:
Technical Data
- Applicable condenser core widthMax. 850mm
- Applicable condenser core layers1, 2, 3
- Bending thickness13.37mm, 19.05mm, 22mm
- Bending shapeL, U, G
- Bending radiusR105 (1 layer) R85 (2 layers) R65 (2 or 3 layers)
- Bending angle0~120°, adjustable
- Bending precision±0.1°
- Operation methodAutomatic/ manual
- Bending speedNot more than 15 seconds
- Core thickness thinning rateNot more than 5%
- Total power4.5kW
- Machine weightAbout 1600kg
