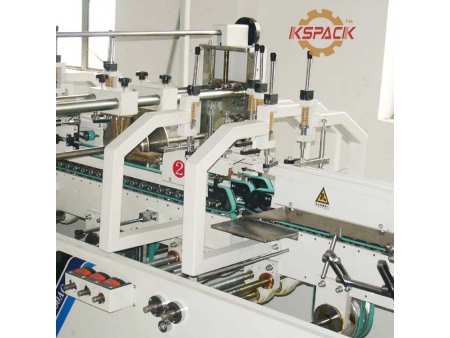

Folder Gluer for Straight Line and Crash Lock Bottom Box

Request a Quote

Website: http://jgcartonmachine.com/7-5-folder-gluer/226689/index.html

This is our folder gluer for straight line and crash lock bottom boxes. The machine is specially designed for paperboard shaping and adhesive application after box cutting. The equipment is highly versatile and can be used to fold and paste various straight seam boxes and bottom edging boxes.

Technical Parameters

• Power capacity: 6.5KW 380V
• Overall size (mm): 9000 x （1100）1300 x 1350
• Weight (kg): 2600

KSHH-800AG
Type of box	Amax	Amin	Bmax	Bmin	Cmin	Dmin	Fmin
No-edged bottom box	700mm	110mm	600mm	110mm	8mm	70mm	51mm
Edge bottom box	700mm	160mm	570mm	180mm	9mm	90mm	85mm

KSHH-1200AG
Type of box	Amax	Amin	Bmax	Bmin	Cmin	Dmin	Fmin
No-edged bottom box	1200mm	110mm	800mm	110mm	8mm	70mm	51mm
Edge bottom box	1200mm	160mm	770mm	180mm	9mm	90mm	85mm

The Machine Package Size

Model	Size(L*W*H)(mm)	Weight(kg)	Volume (㎡)
KSHH-800AG	2820*1130*1400	920/850	4.46
	2750*1160*1250	1050/920	3.99
	2680×1030×1040	650/580	2.87

Model	Size(L*W*H)(mm)	Weight(kg)	Volume (㎡)
KSHH-1200AG	2820*1370*1240	1020/910	4.79
	2750*1380*1250	1150/980	4.74
	2680×1110×1040	680/600	3.09

Details
