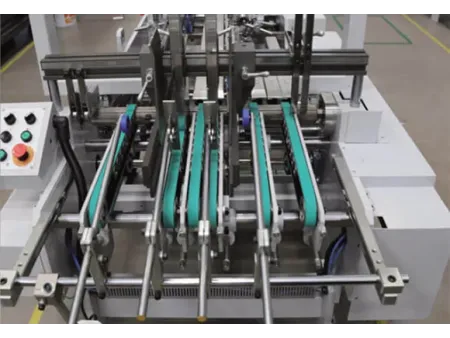

Box Folder Gluer
Request a Quote
MK800FBII
Watch Video
The MK800FBII box folder gluers feature a robust steel frame and modular design, integrating all functional units for fast installation and reliable high-speed operation. They can be fitted with an optional HHS gluing unit and additional accessories to handle various types of boxes such as straight-line, double-wall, crash lock bottom, 4/6 corner, and partition boxes. When equipped with an optional HHS on-line inspection module our MK800FBII box folder gluers can carry out high-speed monitoring and automatic ejection of defective boxes, ensuring consistent quality throughout production.
Technical Parameters
| Overall Dimensions (L × W × H) | 14800 × 2010 × 2000mm |
| Weight | 7300 kg |
| Max. Speed | 400 m/min |
| M | 200–800 g/m² cardboard, N/E/F flute corrugated cardboard |
| Max. Blank Size | 800 × 800 mm |
| Min. Blank Size | 140 × 90 mm (*90 × 90 optional) |
| Supported Box Types | Straight-line boxes, double-wall boxes, crash lock bottom boxes, 4/6 corner boxes, partition boxes |
| Rated Power | 13 kW (17 kW with back-folding options) |
| Full Load Power | 15 kW (20 kW with back-folding options) |
| Motor Power | 11 kW |
| Air Source | 0.5–0.7 MPa, ≥0.32 m³/min |
| Glue | Solvent quick-drying glue suitable for high-speed automatic box folder gluer |
Main Configuration
Feeding Section
- A high-strength vibrating motor ensures stable feeding of boxes.
- Feeding accessories feature a special profile structure with pneumatic up-and-down adjustment, to ensure a simple and precise operation.
Pre-folding Section
- Boxes are pre-folded 180° at the first crease line and 135° at the third crease line, so they unfold easily for filling.
- Aluminum profiles are light but strong, easy to position, and quick to adjust for setup.
Crash Lock Bottom Section
- Extra modules can be added to handle specific box types, giving operators flexibility for different production requirements.
- The modular design reserves space for the back-folding servo system, and operators can adjust folding parameters using the interface.
- Optional attachments are available to handle specialized boxes or support complex lock-bottom folding.
Folding Section
- The folding belts speed can be adjusted to match production requirements.
- The folding belt design prevents interference from the folding guide, ensuring boxes fold without wrinkles or misalignment.
Pressing Section
- The high-speed counting control unit, developed in-house, controls pressing accurately and allows operators to manage the process easily.
Delivery Section
- The pneumatic pressure adjustment allows precise control to achieve the required overlap between boxes.
- Drive belts collect boxes and can be adjusted individually to ensure neat stacking.
- Operators can set delivery speed to match the packing process.
Human Interface
- PLC control with HMI coordinates all functional sections.
- The interface automatically detects box length, monitors operating conditions, and provides clear alerts for faults.
