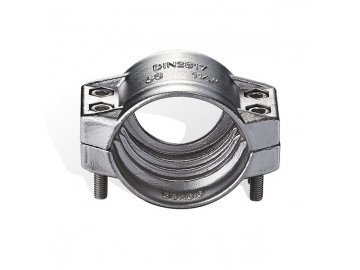

Safety Clamp
Request a Quote
- Material: AISI 304, aluminum
- Size: DN15-DN200
- Standards: ASTM, 3A, SMS, DIN, IDF, RJT, UL213, etc.
- Customized service can be provided according to your drawings or samples.

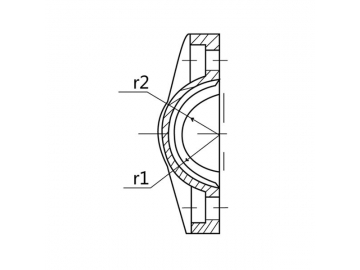

Thanks to the corrugated design inside, Lisin safety clamps are more solid than normal clamps when used in ordinary pressure and high pressure hose connection.

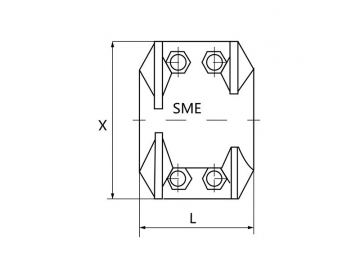

Art. No. | Size | ID of Pipe | X | L |
023051 | 13 × 5 | 22 ~ 24 | 51 ± 2 | 50 ± 1 |
023052 | 19 × 6 | 30 ~ 33 | 63 ± 2 | 50 ± 1 |
023081 | 25 × 5 | - | ||
023053 | 25 × 6 | 36 ~ 39 | 63 ± 2 | 50 ± 1 |
023054 | 25 × 8 | 40 ~ 43 | ||
023082 | 32 × 5 | - | ||
023055 | 32 × 6 | 43 ~ 46 | 76 3/-2 | 50 ± 1 |
023056 | 32 × 8 | 47 ~ 50 | 78 3/-2 | 50 ± 1 |
023083 | 38 × 5 | - | ||
023057 | 38 × 6.5 | 50 ~ 52 | 83 3/-2 | 50 ± 1 |
023058 | 38 × 8 | 53 ~ 56 | 85 3/-2 | 50 ± 1 |
023059 | 38 × 10 | 53 ~ 56 | 54 3/-2 | 50 ± 1 |
023060 | 40 × 7 | 53 ~ 56 | 85 3/-2 | 50 ± 1 |
023061 | 40 × 10 | 58 ~ 61 | 90 3/-2 | 50 ± 1 |
023062 | 45 × 7 | 62 ~ 63 | ||
023081 | 50 × 2 | - | ||
023070 | 50 × 5 | - | ||
023079 | 50 × 5.5 | - | ||
023063 | 50 × 6 | 62 ~ 63 | ||
023064 | 50 × 8 | 64 ~ 67 | 102 3/-2 | 56 ± 1 |
023065 | 50 × 10 | 69 ~ 71 | 106 3/-2 | 56 ± 1 |
023080 | 63 × 6 | - | ||
023066 | 63×8 (65×7) | 78 ~ 82 | 120 4/-2 | 74 ± 1 |
023067 | 63 × 10 | 84 ~ 87 | 124 4/-2 | 74 ± 1 |
023084 | 75 × 6 | - | ||
023071 | 75 × 7.5 | - | ||
023068 | 75 × 8 | 89 ~ 94 | 132 4/-2 | 76 ± 1 |
023072 | 75 × 10 | 94 ~ 97 | 136 4/-2 | 76 ± 1 |
023075 | 80 × 8 | 94 ~ 97 | 137 4/-2 | 76 ± 1 |
023073 | 90 × 6.5 | - | ||
023085 | 100 × 6.5 | - | ||
023069 | 100 × 8 | 114 ~ 119 | 166 4/-2 | 120 ± 1 |
023074 | 100 × 10 | 118 ~ 122 | 170 4/-2 | 120 ± 1 |
023086 | 100 × 12 | 122 ~ 126 | 174 4/-2 | 120 ± 1 |
023076 | 125 × 10 | 143 ~ 148 | 192 4/-2 | 147 ± 1 |
023077 | 150 × 10 | 167 ~ 173 | 227 4/-2 | 180 ± 1 |
023078 | 200 × 12 | 222 ~ 229 | 284 4/-2 | 240 2 |
