Single Pin Clamp

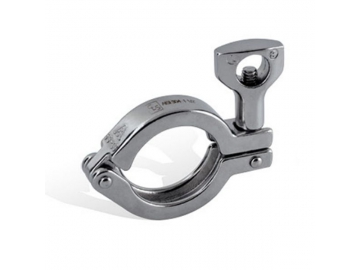

Single Pin Clamp 13MHH
- Material: AISI 304, AISI 316L
- Size: Ø12.7-305 &1/2"-12"
- Standards: ASTM, 3A, SMS, DIN, IDF, RJT, UL213, etc.
- Customized service can be provided according to your drawings or samples.
The single-pin clamp is the most popular type of fitting used in sanitary processes today. Using a single pin clamp to join piping systems or hoses might help keep your process flowing.
Lisin single pin clamp 13MHH is a heavy duty sanitary clamp made from AISI 304 stainless steel or AISI 316 stainless.
AISI 304 stainless steel single-pin clamp can be used in sanitary applications including dairy, food, beverage, winery and brewery. AISI 316 stainless steel single-pin clamp can be used in medical, pharmacy applications.
Lisin also provides custom clamp solutions to OEMs, retailers, and distributors with functional expertise and decades of experience.

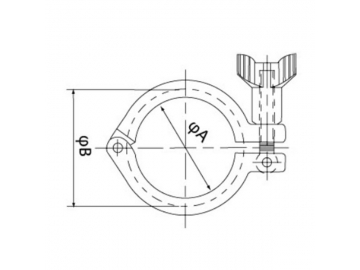

| Size | ØA | ØB |
| A37 | 27.8 | 37 |
| 1-1 1/2 | 44.4 | 53.6 |
| 2.0" | 57.8 | 67 |
| 2 1/2" | 71.4 | 80.6 |
| 3.0" | 84 | 94.2 |
| 3 1/2" | 99 | 109.2 |
| 4.0" | 110 | 122.2 |
| 4 1/2" | 123 | 133.2 |
| 5" | 135.5 | 148X3.5 |
| 5" | 135.5 | 148X5.6 |
| 5.5" | 145 | 159 |
| 6.0" | 155.4 | 170.4 |
| DN150 | 173 | 187 |
| 8.0" | 205 | 220 |
| DN200 | 223 | 237 |
| 10" | 258 | 272 |
| 11" | 276 | 290 |
| 12" | 307 | 323 |

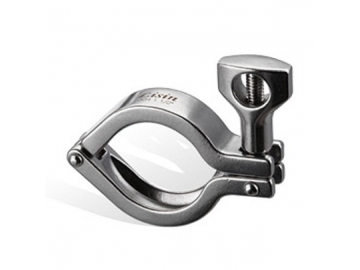

Single Pin Clamp 13IS
- Material: AISI 304
- Size: Ø25-108&1"-4"
- Standards: ASTM, 3A, SMS, DIN, IDF, RJT, UL213, etc.
- Customized service can be provided according to your drawings or samples.
The 13IS single pin clamp, commonly known as the wingnut I-line clamp, used to ensure a leak-resistant, secure connection for sanitary process lines.
Lisin I-Line fitting clamps are available in AISI 304 stainless steel. As a professional pin clamps manufactures, we are committed to providing you both high performance products and superior service. Our clamp fittings are manufactured strictly in accordance with international standards like as ASTM, 3A, SMS, DIN, IDF, RJT, UL213, etc.
Lisin also provides custom clamp solutions to OEMs, retailers, and distributors with functional expertise and decades of experience.

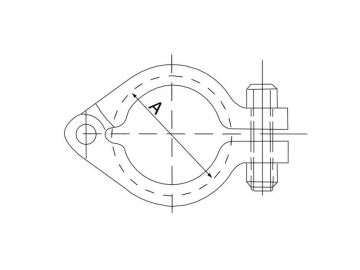

| Size | ØA |
| 1~1 1/2" | 54 |
| 2" | 71.4 |
| 2 1/2" | 88.9 |
| 3" | 103.2 |
| 4" | 127 |
| 6" | 195.3 |
| 8" | 246 |

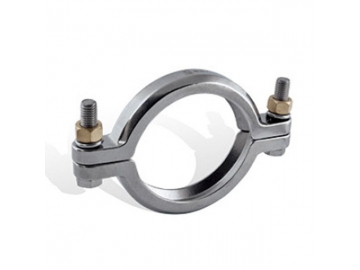

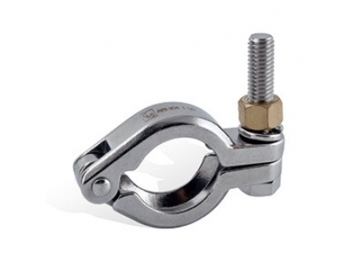

Single Pin Clamp 13IU
- Material: AISI 304
- Size: Ø25-219 &1"-8"
- Standards: ASTM, 3A, SMS, DIN, IDF, RJT, UL213, etc.
- Customized service can be provided according to your drawings or samples.
Single pin clamp 13IU is also a kind of I-line clamp, used to ensure a leak-resistant, secure connection for sanitary process lines. Made of AISI 304 stainless steel, single pin clamp 13IU is suitable for sanitary applications including dairy, food, beverage, winery, brewery and more.

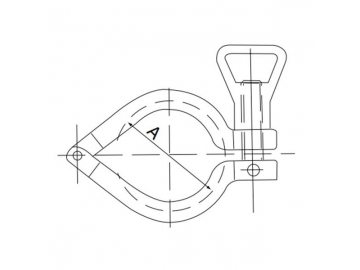

| Size | ØA |
| 1~1 1/2" | 54 |
| 2" | 71.4 |
| 2 1/2" | 88.9 |
| 3" | 103.2 |
| 4" | 127 |
| 6" | 195.3 |
| 8" | 246 |
