Semi-Automatic Single Head Stitcher
Request a Quote

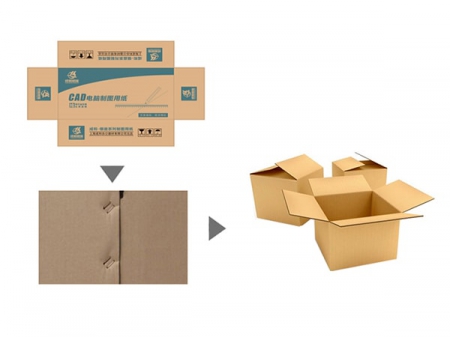

This is our semi-automatic single head stitcher that features a dual servo drive for outstanding efficiency for carton production. The equipment is easily controlled via touch screen interface and carton size and stitching distance can be quickly changed at a moment's notice, saving operating time.

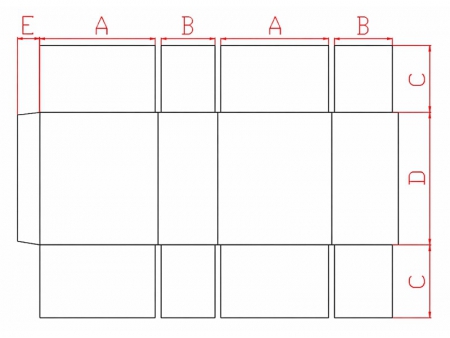

| Max. paper size (A B)*2 | 3600mm |
| Min. paper size (A B)*2 | 600mm |
| Max. cover C | 350mm |
| Min. cover C | 65mm |
| Min. width (C D C) | 350mm |
| Max. carton width (B) | 700mm |
| Min. carton width (B) | 150mm |
| Max. carton length (A) | 1100mm |
| Min. carton length (A) | 150mm |
| Machine power | 4kW |
| Machine dimension | 2800 × 2600mm |
| Machine weight | 1500kg |
| Stitch distance | 20–120mm |
| Machine speed | 600nails/min |
| Wire No. | 17#, 18# |
| Stitch number | 1–99 |
