Water-Cooled Diesel Welding Generators (Four Cylinder)
Request a Quote
300A-600A Welding Generator
300A-600A Welding Generator
Features
- Multi-function power and welding integration
This all-in-one water-cooled diesel generator combines power generation and welding capabilities, meeting both electricity supply and on-site welding needs. It comes standard with Tungsten Inert Gas (TIG) and Metal Inert Gas (MIG) welding functions, and can be customized for additional welding technologies upon request. - Low-noise and vibration-free operation
Constructed with a noise-reducing enclosure and specially designed muffler to substantially decrease sound levels and ensure near-silent operation, with minimal vibration—ideal for noise-sensitive environments. - Stable performance with strong output

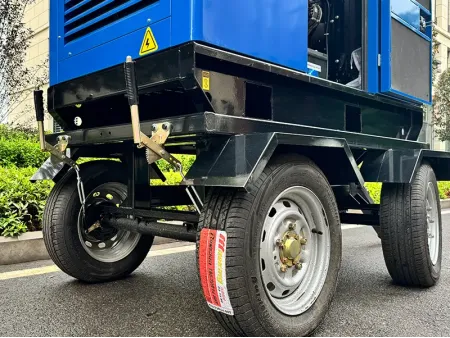

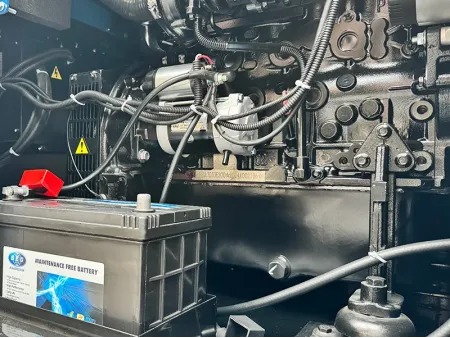

Powered by a durable four-cylinder, water-cooled diesel engine that delivers reliable and consistent power. It provides smooth voltage regulation and stable welding current suitable for demanding field applications. - Optional trailer for improved mobility
Can be equipped with a towable trailer to enhance mobility, suitable for mobile construction sites, pipeline repairs, or outdoor industrial welding tasks.
Specifications
| Model | | | | | |
| Welder | Welding Type | TIG (GTAW gas tungsten arc welding) MIG (GMAW gas metal arc welding) | |||
| NO. of Welding Torch | One & Two | ||||
| No-Load Voltage (V) | 60-70 | 60-70 | 60-70 | 60-70 | |
| Welding Voltage (V) | 22-28 | 22-28 | 22-28 | 22-28 | |
| Welding Current (A) | 30-400 | 30-500 | 30-600 | 30-300 | |
| Load Continuous Rate | 60% | 60% | 60% | 60% | |
| Auxiliary Power | AC380V/20kW | AC380V/30kW | AC380V/50kW | AC380V/20kW | |
| Engine | Engine Model | WP2.3D25E200 | WP2.3D33E200 | WP4.1D66E200 | WP2.3D25E200 |
| Engine Type | 4 cylinder, water-cooled, direct injection | ||||
| Bore Size×Stroke (mm) | 89×92 | 89×92 | 89×92 | 89×92 | |
| Displacement (L) | 2.3 | 2.3 | 2.3 | 2.3 | |
| Starting System | Electric Start | ||||
| Oil Capacity (L) | 8 | 8 | 13 | 8 | |
| Generator | Fuel Tank Capacity (L) | 70 | 70 | 70 | 70 |
| Noise Level (dBA/7m) | 75 | 75 | 75 | 75 | |
| Dimension (body /with trolley) (mm) | 1800×900×1100 /2340×1210×1800 | 1800×900×1100 /2340×1210×1800 | 2200×1050×1300 /2740×1360×2000 | 1800×900×1100 /2340×1210×1800 | |
| Weight (body /with trolley) (kg) | 700/885 | 716/902 | 920/1106 | 700/885 | |
