Embossing Machine

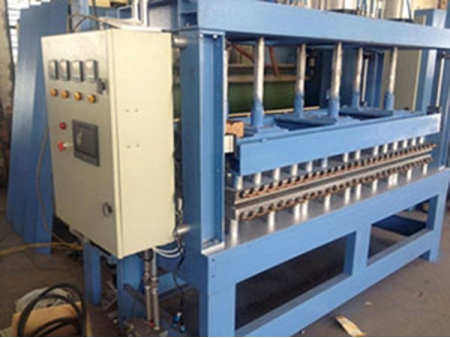

We have different embossing machines available for use in different industries, including metal embossing machines, fabric embossing machines and paper embossing machines.

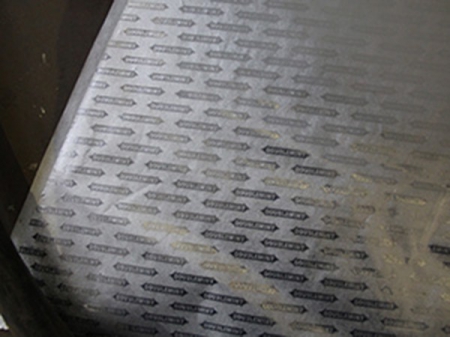

- Metal
- 3D Fabric
- Cigarette Paper
In addition to this embossing machine, Zhenhuan also supplies high quality roll forming machine, spiral duct forming machine, plasma cutting machine and welding machine etc. for customers worldwide.
- Max. plate width 1350mm (or as required)
- Embossing height 1.5mm (or as required)
- Embossing speed 18m/min
- Dimension 3300×1100×1500mm
- Applicable materialCarbon steel, stainless steel, aluminum
- Applicable material thicknessCarbon steel: 2mm, stainless steel: 1.4mm, or as required
- Max. plate width1350mm (or as required)
- Embossing roller material9Cr2M, tempered and quenched with HRC60
- Embossing roller diameter350mm (or customized)
- Embossing height1.5mm (or as required)
- Lifespan of embossing rollers2 years
- Main drive motor powerAC motor, 11kW
- Embossing speed18m/min
- Dimension3300×1100×1500mm
- WeightAbout 4500kg
- Embossing patternBased on customer demand
This machine is used to emboss 3D flower patterns on a variety of fabrics.
- Width of embossing: 2m, 2.5m, 3.2M
- Pressure method: Pneumatic
- Transmission: Servo motor sprocket feed
- PLC & HMI: Delta, Taiwan
- Machine weight: About 2800kg
- Machine dimension: About 3200 x 600 x 2300mm
This machine is used to emboss paper materials with scroll-like, composite aluminum foil papers or other materials of similar properties. It carries out embossing using an electric hydraulic pressure at constant levels, and features a durable structure, easy operation, high accuracy and excellent stability.
- Effective working breadth 500-1000mm
- Length of embossing roller 1000mm
- Working speed 250m/min
- Total power 25kW
- Effective working breadth500-1000mm
- Length of embossing wool roller1000mm
- Diameter of embossing wool roller432mm
- Length of embossing roller1000mm
- Diameter of embossing roller216mm
- Suitable thickness of materials35-160g/m2
- Max. diameter of winding and unwinding1000mm
- Diameter of winding and unwinding shafts76mm
- Working speed250m/min
- Total power25kW
- Dimension of machine4100 x 2550 x 1340mm
- Machine weightAbout 8000kg
