Leather Processing Machine

The hydraulic leather fleshing machine is designed and manufactured based on abundant practical experience and up-to-date technology from Italy. The fleshing machine features smooth and stable running, reliable performance and simple operation, which is especially suitable for the fleshing process of whole fur.

Wet-blue leather sorter is used for separately stacking leather of various grades and classifications.

• Working width: 3200mm
• Working speed: 0-16m/min
• Outline: 24800 x 4700 x 5600mm
• Power: 24kw
• Weight: 19800kg

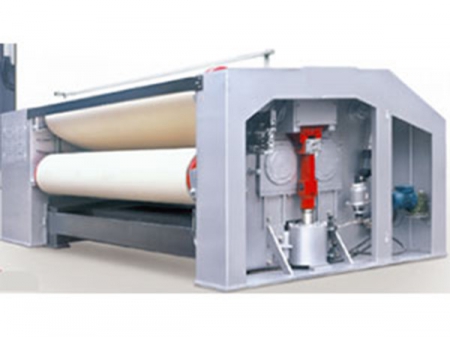

This machine is suitable for the sammying and spreading of wet-blue leather (half-processed leather), such as pigskin, cattle skin and sheepskin. After being processed by the machine, moisture content in leather is up to about 50%, which can satisfy the needs of precise splitting and shaving.

This through-feed sammying machine has two stretching rollers and five squeeze rollers, ensuring whole piece stretching and squeezing. The machine features high leather yield, fast speed and low sammying pressure, etc., which is mainly for bigger and thicker wet-blue cattle hides.

Equipped with special stretching structure to reduce crease and got higher yield of leather.

• Working width: 3200mm
• Motor power: 25kw
• Feeding speed: 0-15m/min
• Outline: 3500 x 3960 x 1650 mm
• N.W: 18500kg

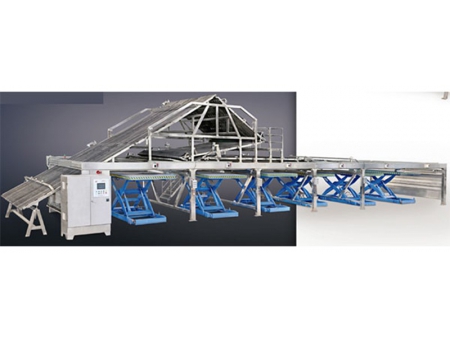

The machine can automatically stack leather on stand or pallet in a continuous manner, thus reducing the labor intensity, and improving production efficiency.

• Working width: 1800mm
• Height of stack: 900-1750mm
• Running distance of carriage: 500-1500mm
• Conveying speed: 0-25m/min
• Working efficiency: 458-800p/h
• Power: 6.7kw
• Overall dimension: 6700 x 3400 x 2400mm

Vacuum system mainly consists of oil ring vacuum pump and roots vacuum booster, which can achieve 10 mbar absolute pressure. Under higher vacuum, vapor in the leather can be largely pumped out in a shorter time, greatly improving the productivity.

• Working plate No.: 1pc for use in laboratory, 2 pcs, 3 pcs, 4 pcs, 5 pcs, 6 pcs optionally
• Working plate size: 2500 x 4000, 3000 x 4000, 3000 x 7000, 3250 x 7000 (Customized specifications available upon request)
• Surface option: Smooth surface, sandblasting surface, semi-matt surface

Taking advantage of natural conditions and residual heat in the workshop dries all types of leather.

• Working width: 3200mm
• Motor power: 4.5kW
• Feeding speed: 0-30m/min
• Outline: 4200 x 3500 x 2000mm
• N.W.: 1980kg

The leather ironing and embossing machine can complete all operations at one time, including ironing, glazing and embossing, greatly improving working efficiency.

• Working width: 1200mm
• Working speed: 3-15m/min
• Max. working temperature: 180℃
• Total power: 40kw
• Outline: 4150 x 3080 x 3980mm
• N.W.: 8800kg
• Roller weight: 1880kg
