Amorphous Transformer Machine
This amorphous transformer is newly developed with amorphous core which has no-load loss 20% less than conventional CRGO cores!
We can provide complete machines for producing amorphous transformers, and technology support as well.
- Amorphous
- Vacuum
This amorphous cutting machine is specially designed for automatic cutting and stacking amorphous strips for cores.
This line adopts PLC control, servo drive, touch screen operation and high precision mechanical transmitting mechanisms, thereby ensuring high automation, high productivity and high reliability.
It is particularly suitable for processing 3-phase-3-column big amorphous alloy cores.
| Model | ||
| Amorphous core height | 150-850mm | 150-2000mm |
| Amorphous core width | 30-450mm | 50-1500mm |
| Amorphous core thickness | 25-130mm | 25-150mm |
| Amorphous strip width | 140-230mm | |
| Cutting length | 300-3000mm | 300-5000mm |
| Cutting thickness | Max. 15 layers. Each layer is 0.025mm in thickness. | |
| Cut-to-length precision | ±0.5mm | |
| Cutting angle precision | ±0.05 degree | |
| Stacking precision | ±0.5mm | |
| Feeding speed | 5-80m/min | |
| Cutting speed | 0-30 times per minute | 0-20 times per minute |
| Electric power supply | 10kW | |
| Air consumption | 0.3m3/min | |
| Machine floor area | 12×2×2.2m | 15×2×2.2m |

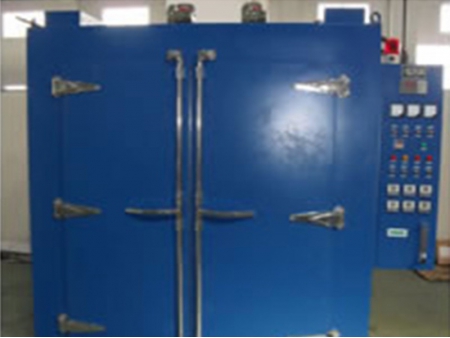

This annealing furnace is specially designed for annealing amorphous cores.
Separate temperature control system (PID), 30-section programmable temperature controller, with over-temperature shut-off and over-temperature alarming functions.
Each phase of heating tube has 200A fuse and three current meters, separate control switch Equipped with 6 temperature sensors with numerical displaying, one for body itself, five for detecting product
Furnace is filled with nitrogen gas. Start/stop filling is controlled by electromagnetic valve which is PLC programable.
- Overall dimension2250×1900×2360mm
- Annealing room size1500×1500×1700mm
- Max. temperature450℃
- Rated power78kW, 3-phase
- Heating durationLess than 3 hours
- Temperature evenness±10℃
