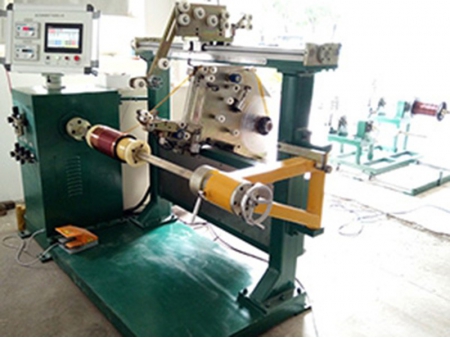

This machine is specially designed for winding high voltage coils with an automatic conductor guidance and interlaminar insulation paper application. It is fully automatic.

• Center height 850mm
• Main spindle torque 800N·m
• Main spindle length 900mm
• Insulation paper width 10-20mm

This is a fully automatic coil winding machine that has been specially designed for winding primary coils used in voltage transformers of less than 110kV and when winding the primary coils of 110Kv or less, one at a time. When winding primary coils for 35kV voltage transformers, two or three coils will be wound simultaneously, with a maximum ability of winding 9 coils at a time. It is also suitable for distribution transformer coils.

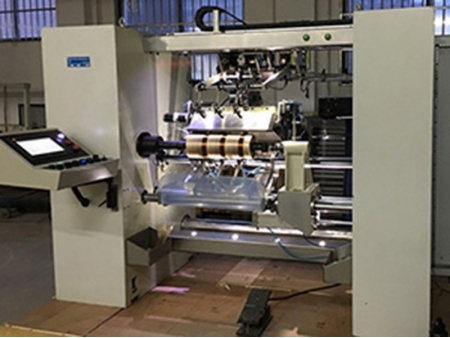

This kind of horizontal coil winding machine is used for winding coils of big capacity transformers and reactors from 5 tons to 35 tons!

This machine can be equipped with vertical and horizontal compacting device and so the windings will be more compact and even, ensuring the quality of winding coils.

Applied with advanced electronic counter which can count both positive and reverse turns, our equipment also comes with power-off memorizing function.

This machine is special for winding coils for high voltage and super high voltage transformers. The chuck can raise/drop according to the height of coil so as to keep the working height.
This machine is inverter control, with stable start-up, low noise and easy operation.
It is equipped with electronic counter which can reduce turns when reversing.
It can automatically stop at pre-set turns.
