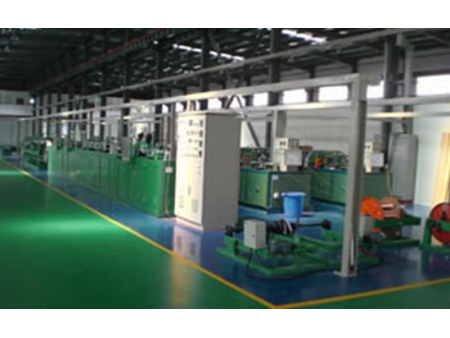

Paper Taping Machine
The configuration of the paper taping machine is on the basis of taping layers, quantity of wires required, and wire reel sizes. This device is able to perform single-wire taping or multi-wire taping. The taping layer ranges from 2 to 60 layers.
Machine Compositions
- Pay-off stands
- Main machine
- Take-up stands
- Control system
Technical Parameters
Wire Specification
- Materialcopper or aluminum flat wire
- Width5~20mm
- Thickness1~16mm
- Section area10~200mm2
- Width/thickness ratio0.4~12
Paper Specification
- Thickness0.040~0.125mm
- Width10~30mm
Taping Head Specification
- Taping pitch8~30mm (stepless adjustable)
- Taping pitch tolerance±0.4mm
- Taping tensionmechanically automatic adjusting, constant tension
- Rated rotating speed800rpm
- Working speed600rpm
- Paper disc diameterouter diameter: 330mm
inner diameter: 75mm - Quantity of paper disc on each taping head3 or 4 pcs
- Paper break sensorThis sensor is used to detect whether paper tape is interrupted or not. If the phototube detects the breaks, our paper taping machine will automatic stop.
- Caterpillar towing deviceThe thicker synchronized gear type belt allows this machine to ensure a stable and reliable liner speed.
- Take-up devicemoment motor drive, constant-tension taking-up, slick rod wiring, take-up disc motorized elevating.
- A fully enclosing cover contributes to prevention of the dust.
Fiberglass & Film Taping Machine
This kind of taping machine is specially designed for applying fiberglass and film to copper or aluminum wires with section areas of 5-40 mm2. The equipment adopts a dual-headed structure and each of the heads has its own control system. In addition, if our tapping machine is applied with high-frequency sintering device, it is able to manufacture special film-taped magnet wires.
Machine Compositions
- Pay-off stand
- Wire straightening device
- Wire polishing & cleaning device
- Film taping head
- Fiberglass taping head
- Varnishing device
- Towing device
- Baking oven
- Take-up stand
Technical Data
- Suitable wire section area5~40mm2
- Fiberglass yarninner diameter 42mm
yarn length 75mm
spool length 95mm - Production speed2.5~4m/min
- Film taping pitch6~24mm
- Fiberglass taping pitch2~10mm
- Baking oven2000mm x 8 pieces
- Towing wheel diameter800mm
- Main driving motor power3kW x 2
- Total electricity consumptionabout 60kW
- Floor areasabout 25m x 3.5m
