VPS-A1002 Single-Axis Vibration Sensor
Request a Quote

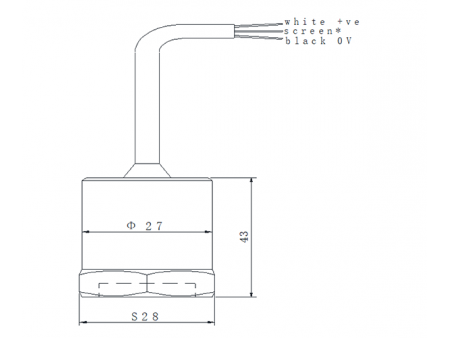

The single-axis vibration sensor is designed for continuous vibration monitoring in harsh industrial environments. Featuring a 4–20mA DC analog output, the sensor’s electrical wiring is axially routed from the top for straightforward integration. Constructed from durable stainless steel, it ensures long-lasting performance even under challenging conditions.

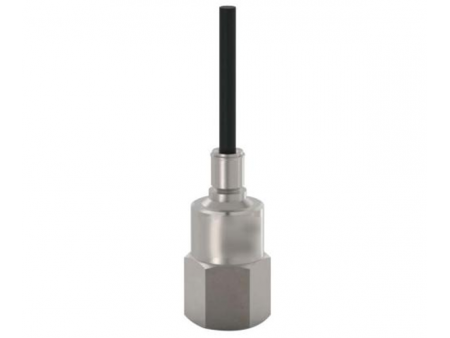

With an IP67 protection rating, the sensor is resistant to dust and water ingress. Its industry-standard two-wire current output is directly proportional to the vibration range, allowing seamless connection to PLCs, DCS systems, and other industrial controllers. The sensor is equipped with an integrated stainless steel braided ETFE cable for easy installation and enhanced durability.
Applications
- Industrial equipment: Continuous vibration monitoring for compressors, blowers, and large fans.
- Food & beverage industry: Vibration control for pumps, compressors, mixers, blenders, conveyors, and packaging equipment.
- Oil & gas refining: Monitoring vibration conditions during refining processes to ensure operational stability.
- Power generation: Vibration data monitoring for fossil fuel, nuclear, hydroelectric, and wind turbines.
- Metallurgy and metal pocessing: Ensuring stable operations by monitoring critical vibration levels.
- Mining, mineral processing and cement production: Monitoring and controlling vibration in heavy construction equipment.
- Portable data collection: Specialized use in portable vibration data collectors and analyzers.
Technical Specifications
| Output Current | 4-20mA (proportional to rms velocity (mm/s)) |
| Supply Voltage | 12-32VDC (4-20mA) |
| Frequency Response | 2Hz-1kHz ±10% |
| Mounted Base Resonance | 5kHz (nominal) |
| Base Type | Isolated base |
| Dynamic Range | 50g (peak) |
| Transverse Sensitivity | < 5% |
| Operating Temperature | -25 to 90℃ |
| Temperature Sensitivity | 0.08%/℃ |
| Housing Material | SUS304 |
| Cable | Integral stainless steel over braided ETFE cable |
| Cable Length | 5m (standard) |
| Mounting Torque | 8Nm |
| Weight | 150g (nominal) |
| Protection Class | IP67 |
| Standard | Conform to ISO10816, ISO4866 Mechanical vibration and shock - vibration of fixed structures |
