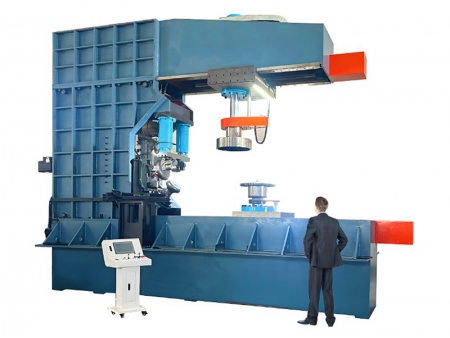

Oval Tank Head Flanging Machine
Our flanging machine is equipped with a copying system which is ideally suitable for flanging oval tank heads or any other special shaped tank heads. These tank heads are commonly used in liquid tank trucks.
In general, this oval tank head flanging machine is comprised of main flanging head, sliding trolley, as well as hydraulic, vacuum, and copying system.
Technical Specifications
- Applicable tank head diameter850-3000mm
- Total flanging height50mm
- Applicable material thickness (Carbon steel)2-8mm
- Applicable material thickness (Stainless steel)2.5-6mm
- Linear flanging speed3-8m/min
- Production speedNo more than 25 minutes per workpiece with the perimeter of 6.5m.
- Total power12kW
- Machine dimension3800m×1300mm×1400mm
