Radiator Water Tank Clinching Machine
The radiator water tank clinching machine is for crimping plastic water tanks to brazed radiator cores.
Main Features
- PLC control, HMI operation, servo driven, automatic clinching
- Automatic leaving gap for tank mouth, idle stroke quick moving, suitable for various plastic tank clinching.
- Technological parameters can be preset and displayed on HMI.
- Quick and easy changing clinching tool for other size tanks
- Many unit radiator tank parameters can be saved and recalled.
- Both auto and manual control methods are available. The auto method is for working, and the manual method is for sampling & testing.
- Safety measures: alarming lamp, actions interlock, safety grating ruler
- HMI displaying working conditions
There are mainly two options for radiator tank clinching

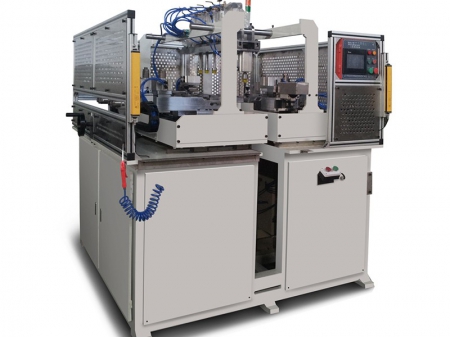

- Full automatic clinching machine: finish crimping long edges and short edges in one cycle without manual operation. Two stations are mounted together.

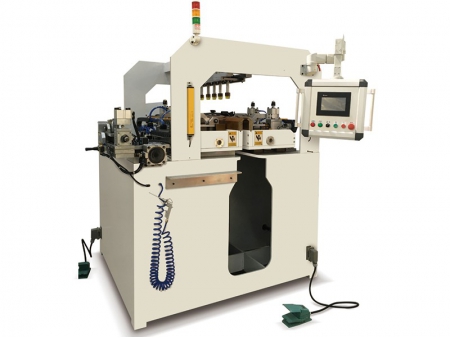

- Semi-automatic clinching machine: finish crimping long edges first, move workpiece to another station to crimp short edges. The two stations are separate on the machine.
Technical Data
- Suitable max. radiator core size1000 x 850mm
- Suitable max. header plate size1000 x 100mm
- Suitable max. thickness of radiator core100mm
- Clinching pitchAdjustable, default 10mm
- Clinch speed1-20 times per minute
- Deformation of core and header plate after clinchingLess than 0.5mm
