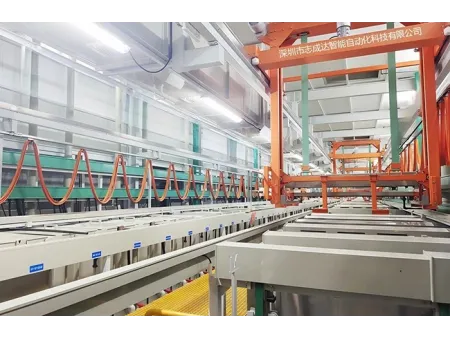

Automated Rack Plating Line (Overhead Hoist)
Also referred to as the Gantry Hoist, it serves as the primary transport mechanism for moving racks between tanks.

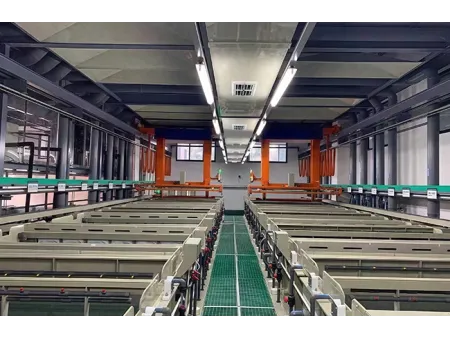

Tanks are arranged sequentially according to the process flow: Pre-treatment, Electroplating, Post-treatment, and Drying. Tank dimensions are customized based on workpiece specifications, with widths reaching 0.5m–5m and depths ranging from 1m–3m.
Includes the temperature control and agitation systems, electrolyte circulation and filtration systems, and the cathode conduction (electrical) system.
Built with a PLC (Programmable Logic Controller) at its core, this system establishes an automated electrical management framework to ensure production stability, consistency, and high efficiency.
