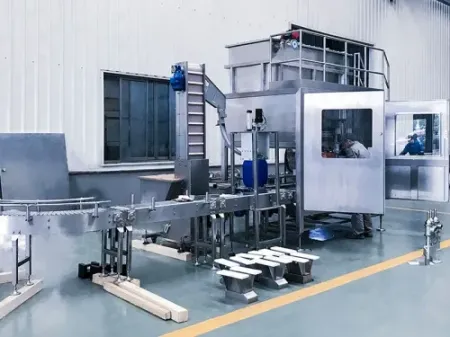

Automatic Filling Machine for Pails and Jerrycans
Request a Quote
(100-120 containers/h)
Specifications
- Filling range: 5-40L
- Container type: plastic/steel jerrycan
- Filling speed: 100-120 containers/hour (single station), 400-600 containers/hour (4-6 stations), depending on material properties and supply pressure
- Number of filling stations: 4-6
- Max. weighing capacity: 40kg
- Scale interval: 10g
- Filling accuracy: ±0.2%
- Operating temperature: -10℃ to 40℃
- Power supply: 380V, 50Hz (or customized)
- Air supply: 0.4-0.6MPa
- Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
Automation Level
- Automatic feeding: Yes
- Automatic bunghole positioning: Yes
- Automatic cap loosening: No
- Automatic quantitative filling: Yes
- Automatic cap placement: Yes
- Automatic capping/tightening: Yes
- Automatic labeling: No
- Automatic palletizing/wrapping: No
Material Properties
- Flammable & explosive: Applicable
- Toxic & hazardous: Applicable
- High viscosity: Applicable
- Highly corrosive: Applicable
- Volatile: Applicable
- Easily solidifying: Applicable
Auxiliary Equipment
- Pneumatic crimper: Optional
- Conveyor system: Optional
- Empty container store warehouse: Optional
- Cartesian palletizer (gantry palletizer): Optional
- Automatic pallet dispenser: Optional
- Labeling machine: Optional
- Stretch wrapping machine: Optional
Features
- High level of automation, significantly reducing labour costs
- Suitable for container sizes ranging from 5L to 40L, enabling multi-size filling on a single machine
- High production capacity, typically configured with 4-6 stations, achieving 400-600 drums per hour depending on product properties and supply pressure
- Ideal for high annual output applications involving toxic, hazardous or volatile chemical products
Recommended Applications
Suitable for lubricating oil filling, antifreeze packaging, adhesive filling, chemical product filling, coating filling and other industrial liquid applications.
- Jerrycan Filling (5-40L)
- Drum Filling (60-220L)
- Palletized Drum & IBC Filling (25-1000L)
- Pail Filling (5-40L)
- Jar & Bottle Filling (300ml-40L)
