CNC Electrophoretic Magnetic Chuck
Request a Quote

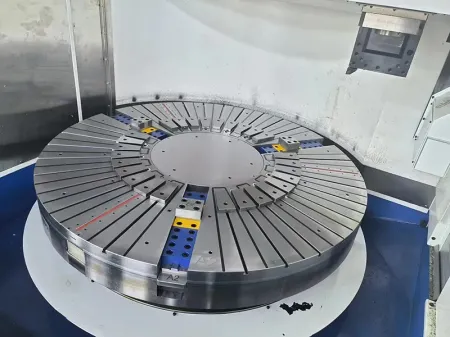

CNC electrophoretic magnetic chuck is an advanced magnetic fixture that combines the characteristics of electromagnets and permanent magnets. It utilizes electrical pulses to control the connection of the magnetic circuit. During operation, it maintains a strong magnetic force without a continuous power supply. Due to these characteristics, electrophoretic magnetic chucks are widely applied in mold processing, machining, bearing manufacturing, engineering machinery, shipbuilding, automotive manufacturing, and home appliance production.
Applications
- Round bar milling and grooving
- Boring and contour machining
- Bending wrought processing
- Bending wrought surface processing
- Mold processing
- Drilling and inner cavity processing
- Parts angle milling grooving
- Top milling and side drilling
- Track rail drilling
- Inner and outer ring and face machining
- Inner and outer ring and face grinding
- Flat high accuracy grinding
Specifications
| Model | Width (mm) (W) | Length (mm) (L) | Height (mm) (H) | Net Weight (kg) | Number of Poles | Pole Size | Suction Force Per Pole |
| | 330 | 330 | 51 | 37 | 16 | 50*50mm | 350kg |
| | 330 | 390 | 51 | 43 | 20 | 50*50mm | 350kg |
| | 330 | 500 | 51 | 56 | 24 | 50*50mm | 350kg |
| | 330 | 620 | 51 | 70 | 32 | 50*50mm | 350kg |
| | 390 | 390 | 51 | 51 | 25 | 50*50mm | 350kg |
| | 390 | 500 | 51 | 66 | 30 | 50*50mm | 350kg |
| | 390 | 620 | 51 | 82 | 40 | 50*50mm | 350kg |
| | 450 | 500 | 51 | 76.5 | 36 | 50*50mm | 350kg |
| | 450 | 620 | 51 | 94 | 48 | 50*50mm | 350kg |
| | 410 | 410 | 51 | 57 | 16 | 70*70mm | 750kg |
| | 410 | 490 | 51 | 68 | 20 | 70*70mm | 750kg |
| | 410 | 620 | 51 | 86 | 24 | 70*70mm | 750kg |
| | 410 | 780 | 51 | 109 | 32 | 70*70mm | 750kg |
| | 490 | 490 | 51 | 82 | 25 | 70*70mm | 750kg |
| | 490 | 620 | 51 | 104 | 30 | 70*70mm | 750kg |
| | 490 | 780 | 51 | 130 | 40 | 70*70mm | 750kg |
| | 570 | 620 | 51 | 120 | 36 | 70*70mm | 750kg |
| | 570 | 780 | 51 | 151 | 48 | 70*70mm | 750kg |
Features
- Advanced electrophoretic magnetic technology provides strong and constant holding force to ensure safe and machining operation.
- Elastic magnetic induction blocks allow for clamping without deformation during the operation.
- The elimination of vibration facilitates multi-face machining within a single setup.
- Complete demagnetization ensures that no residual magnetism remains on the workpiece after the cycle.
- The electrophoretic magnetic chuck maintains a strong and constant holding force even during power failures.
- A fully waterproof design ensures the electrophoretic magnetic chuck remains unaffected by voltage fluctuations and prevents thermal deformation.
- Improved process optimization reduces tooling requirements, shortens productions cycles, and increases overall efficiency.
