PCBN Tools (Tool Bits for Whirling), CNGA

Request a Quote

Website: http://winicetech-en.com/pcbn-cutting-tools-cnga-2-2-5.html

Technical Specifications

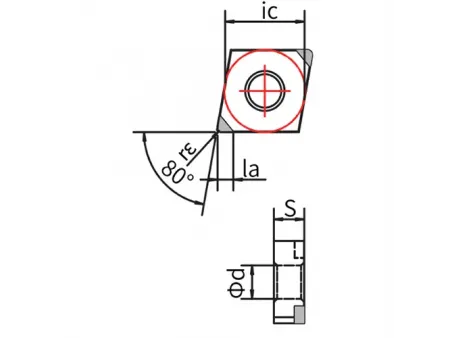

ISO Code	ANSI Code	Tips	Tip Forming	Edge Length	Hole Diameter	Thickness	Nose Radius	Tip Length	H	K	S
				ic	Ød	s	r	la
CNGA120404	CNGA431	2N	Standard	12.7	5.16	4.76	0.4	2.2	●	●	●
CNGA120418	CNGA432						0.8
CNGA120412	CNGA433						1.2
CNGA120404	CNGA431	2N	Wiper	12.7	5.16	4.76	0.4	2.2	●	●	●
CNGA120418	CNGA432						0.8
CNGA120412	CNGA433						1.2
CNGA120404	CNGA431	2N	Chip breaker	12.7	5.16	4.76	0.4	2.2	●	●	●
CNGA120418	CNGA432						0.8
CNGA120412	CNGA433						1.2
CNGA120404	CNGA431	2N	Standard	12.7	5.16	4.76	0.4	3	●	●	●
CNGA120418	CNGA432						0.8
CNGA120412	CNGA433						1.2
CNGA120404	CNGA431	2N	Wiper	12.7	5.16	4.76	0.4	3	●	●	●
CNGA120418	CNGA432						0.8
CNGA120412	CNGA433						1.2
CNGA120404	CNGA431	2N	Chip breaker	12.7	5.16	4.76	0.4	3	●	●	●
CNGA120418	CNGA432						0.8
CNGA120412	CNGA433						1.2
CNGA120408	CNGA432	2N	Standard	12.7	5.16	4.76	0.8	4	●	●	●
CNGA120412	CNGA433						1.2
CNGA120416	CNGA434						1.6
CNGA120408	CNGA432	2N	Wiper	12.7	5.16	4.76	0.8	4	●	●	●
CNGA120412	CNGA433						1.2
CNGA120416	CNGA434						1.6
CNGA120408	CNGA432	2N	Chip breaker	12.7	5.16	4.76	0.8	4	●	●	●
CNGA120412	CNGA433						1.2
CNGA120416	CNGA434						1.6
CNGA120404	CNGA431	4N	Standard	12.7	5.16	4.76	0.4	2.2	●	●	●
CNGA120418	CNGA432						0.8
CNGA120412	CNGA433						1.2
CNGA120404	CNGA431	4N	Wiper	12.7	5.16	4.76	0.4	2.2	●	●	●
CNGA120418	CNGA432						0.8
CNGA120412	CNGA433						1.2
CNGA120404	CNGA431	4N	Chip breaker	12.7	5.16	4.76	0.4	2.2	●	●	●
CNGA120418	CNGA432						0.8
CNGA120412	CNGA433						1.2
CNGA120404	CNGA431	4N	Standard	12.7	5.16	4.76	0.4	3	●	●	●
CNGA120418	CNGA432						0.8
CNGA120412	CNGA433						1.2
CNGA120404	CNGA431	4N	Wiper	12.7	5.16	4.76	0.4	3	●	●	●
CNGA120418	CNGA432						0.8
CNGA120412	CNGA433						1.2
CNGA120404	CNGA431	4N	Chip breaker	12.7	5.16	4.76	0.4	3	●	●	●
CNGA120418	CNGA432						0.8
CNGA120412	CNGA433						1.2
CNGA120408	CNGA432	4N	Standard	12.7	5.16	4.76	0.8	4	●	●	●
CNGA120412	CNGA433						1.2
CNGA120416	CNGA434						1.6
CNGA120408	CNGA432	4N	Wiper	12.7	5.16	4.76	0.8	4	●	●	●
CNGA120412	CNGA433						1.2
CNGA120416	CNGA434						1.6
CNGA120408	CNGA432	4N	Chip breaker	12.7	5.16	4.76	0.8	4	●	●	●
CNGA120412	CNGA433						1.2
CNGA120416	CNGA434						1.6
