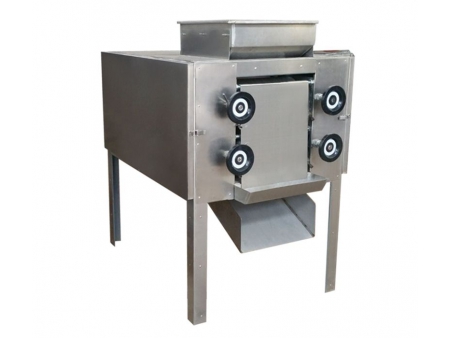

Fast Granule Processor
Request a Quote
Description
The fast granule processor is suitable for particle crushing and granulating in industries such as traditional Chinese medicine and western medicine, food, chemical paint and fertilizer etc.
After being cut by high speed rotary blades, the granulating finished granules will be discharged via screen plate so that we can get particles of uniform shapes and specifications.
All the parts of this granulator is made of stainless steel of which the surface is polished. Both the assembly and disassembly and the cleaning are convenient.
The following are three kinds of fast granule processor for our customers to choose from:| Type | KZL100 | KZL200 | KZL300 |
| Production capability (kg/h) | 20-150 | 100-500 | 30-300 |
| Stator screen diameter （mm) | 100 | 200 | 300 |
| Stator screen length（mm) | 96 | 196 | 305 |
| Main shaft speed (r/min) | 1200 | 2000 | 2840 |
| Motor power (kw) | 0.75 1.5 | 1.5 | 5.5 |
| Weight (kg) | 170 | 200 | 260 |
| Approximate outline dimension (L*W*H) (mm) | 968*3450*980 | 1000*380*1120 | 1070*900*1474 |
