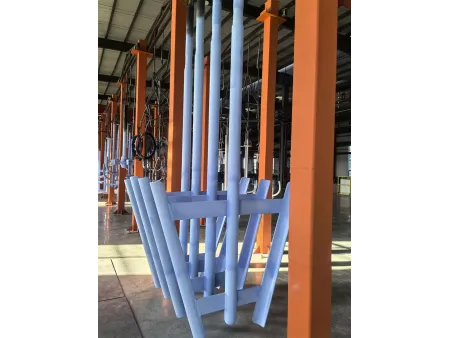

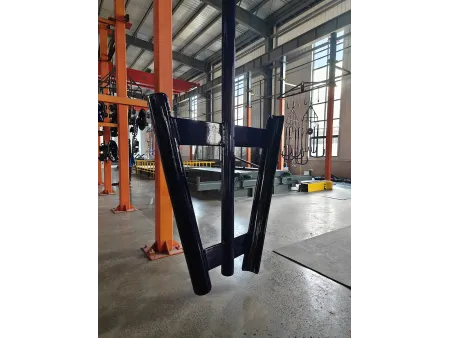

Glass Lined Agitator
The glass lined agitator (for improved evaporation efficiency) is suitable for glass-lined reactors with capacities from 1000l to 20000l. It is designed for chemical and pharmaceutical production that requires better evaporation performance, especially in processes such as distillation and concentration where liquid level changes can reduce the effective heat transfer area.
Using a special semi-circular blade design with a centrifugal lifting effect, the glass lined agitator (for improved evaporation efficiency) helps move material upward during operation. This structure allows the reactor to continue using the upper vessel wall heat transfer area effectively even when the liquid level drops, making the agitator a practical choice for processes where evaporation area can easily become limited.
- Better Use of Vessel Wall Heat Transfer Area
During distillation or concentration, the glass lined agitator (for improved evaporation efficiency) helps maintain effective use of the upper vessel wall heat transfer area even when the liquid level decreases, which helps improve evaporation efficiency. - Suitable for Higher-Speed Operation
The glass lined agitator (for improved evaporation efficiency) usually operates at a relatively high speed, typically above 80 rpm, to create the required centrifugal upward movement of the material. - Reliable Shaft and Blade Materials
The agitator shaft uses export-grade seamless steel pipe, and the blades are made from titanium-alloy steel plate, which helps support stable glass lining quality. - Reduced Risk of Enamel Chipping
The pipe end uses a closed-end head structure, which helps reduce stress concentration and lower the risk of enamel chipping.
