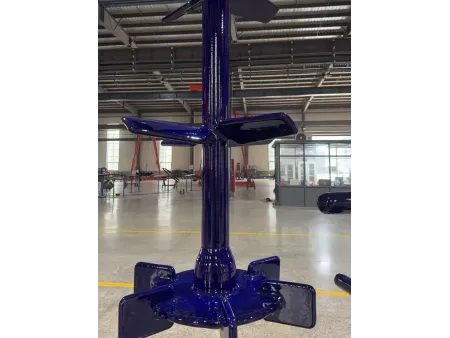

Glass-Lined Turbine Agitator
Request a Quote
The turbine agitator is suitable for glass-lined reactors with capacities from 50l to 32000l. It is a strong mixing option for chemical and pharmaceutical production that requires higher agitation intensity, stronger dispersion, and more flexible flow control. The turbine agitator is especially suitable for processes such as gas-liquid dispersion, solid-liquid mixing, and emulsification.
With four or more blades, the Turbine Agitator can be configured with curved, straight, or pitched blade forms to match different process requirements more effectively. This multi-blade design provides stronger radial flow and shear performance for more demanding mixing duties.
→
Features
- Curved Blade Design for Gentler Solid Handling
The curved blade type features blades with a built-in r-angle, which helps reduce particle wear and lower shear intensity. The curved blade turbine agitator is suitable for solid-liquid settling systems and helps lift settled material from the bottom to create axial movement. - Straight Blade Design for Stronger Shear
The straight blade type provides stronger shear performance and is suitable for gas-liquid dispersion and for emulsification or dispersion processes involving immiscible systems. - Pitched Blade Design for Balanced Flow
The pitched blade type uses blades arranged at an angle of 30° to 60° to the vertical support, allowing the turbine agitator to combine axial flow and radial flow for more balanced mixing performance. - Disc Turbine Structure for Gas-Liquid Reactions
The disc turbine structure uses 6 to 8 blades evenly arranged on a disc. This design is commonly used in gas-liquid reaction processes and helps disperse gas more evenly into the liquid phase. - Flexible Blade Combination for Process Optimization
The turbine agitator can be combined with other blade forms according to liquid level height and process requirements, helping achieve a more suitable mixing result under different operating conditions. - Structure Designed for Reliable Glass Lining Quality
The agitator shaft uses export-grade seamless steel pipe, and the blades are made from titanium-alloy steel plate, which helps support better structural consistency and glass lining quality control. - Reduced Stress Concentration at the Pipe End
The pipe end uses a closed-end head structure, which helps reduce stress concentration and lower the risk of enamel chipping.
