PET Multifilament Braided Sleeving
Request a Quote
EX400
- Material: PET (polyester)
- Standard Color: Black
- Operating Temperature: -50°C to 150°C
- Cutting Method: Hot cutting
- Packaging: Paper reel
Now

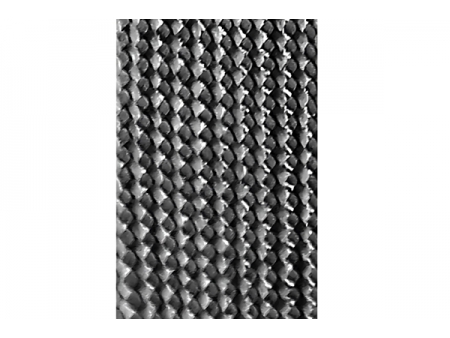

EX400 series braided sleeving features a high-density multifilament braided structure, providing excellent coverage and abrasion resistance. The sleeving is lightweight, soft, and slightly expandable, allowing flexible installation while securely wrapping cables of varying diameters.
Applications

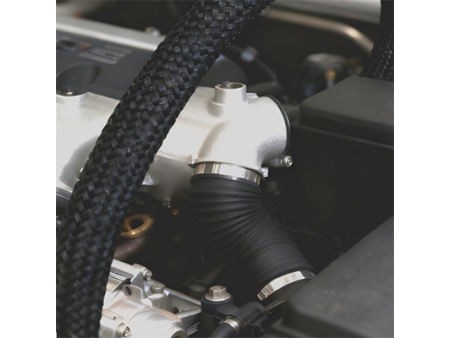

This PET braided sleeving is suitable for applications requiring abrasion protection, including wire harnesses, door lock cables, pipelines, hoses, and cable assemblies.
Certifications
Parameters
| Model | Flat Width (mm) | Application Range (mm) | Packaging Length (m/reel) |
|---|---|---|---|
| 4±1 | 2~4 | 200 | |
| 6±1 | 5~7 | 100 | |
| 7±1 | 7~8 | 100 | |
| 8±1 | 8~10 | 100 | |
| 10±2 | 10~12 | 100 | |
| 12±2 | 12~14 | 100 | |
| 14±2 | 14~16 | 100 | |
| 16±2 | 16~18 | 100 | |
| 18±2 | 18~20 | 100 | |
| 20±2 | 20~23 | 100 | |
| 25±3 | 24~28 | 100 |

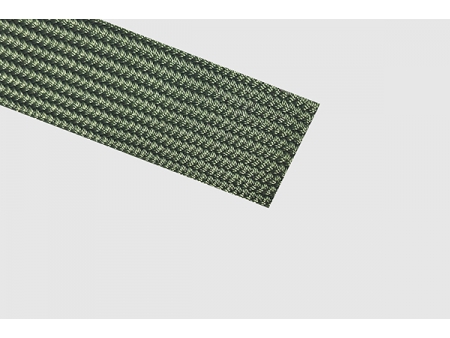

*"XX" represents color, where XX=01 indicates black and XX=08 indicates army green.
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
