Nylon Multifilament Braided Sleeving

Nylon Multifilament Braided Sleeving
Nylon Multifilament Braided Sleeving
Nylon Multifilament Braided Sleeving
Nylon Multifilament Braided Sleeving
Nylon Multifilament Braided Sleeving
Nylon Multifilament Braided Sleeving
Nylon Multifilament Braided Sleeving
Request a Quote

Material: Nylon multifilament
Flammability: VW-1
Operating temperature range: -45° ~ 120 °C
Melt Temp.:482°F / 250°C.
Operating range: -60℃- 160℃
Certification: RoHS

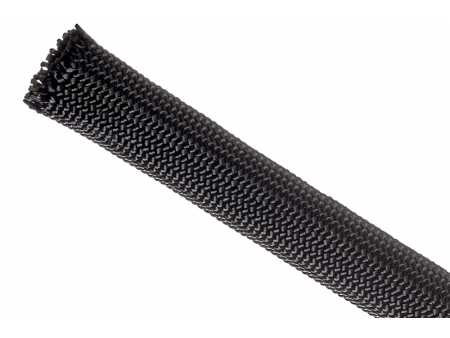

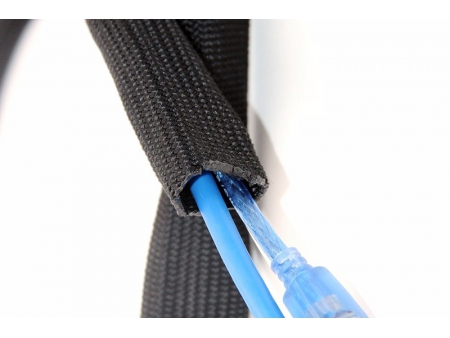

Nylon multifilament braided sleeving is the perfect sleeving product to protect and enhance the appearance of wires and cables. The nylon multifilament braided sleeve is highly resistant to abrasion, cuts, common marine and automotive chemicals, UV damage, and vibration.

Optional specification

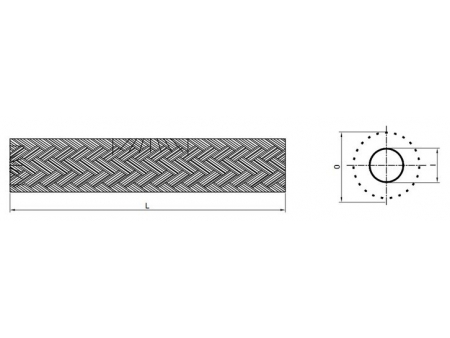

Part No. Nominal size (W) Expandability Packing (m/roll)
Min.(I)
mm
Max.(O)
mm
PAF-003 3 2 4 350m
PAF-006 6 4 7 350m
PAF-008 8 5 9 350m
PAF-010 10 6 11 350m
PAF-012 12 8 13 300 m
PAF-016 16 10 17 250 m
PAF-019 19 12 20 200 m
PAF-023 23 15 24 200 m
PAF-025 25 16 26 200 m
PAF-032 32 20 33 150 m
PAF-038 38 24 39 100 m
PAF-050 50 32 51 100 m
PAF-063 63 40 64 100 m
