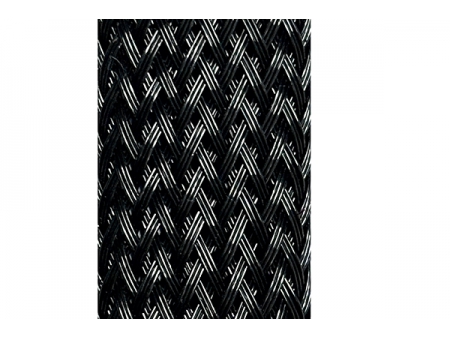

PET Monofilament Braided Sleeving

Request a Quote

Website: http://sleeving-product.com/pet-monofilament-braided-sleeving-1-6.html

EX600

• Material: PET (polyester)
• Color: Black (custom colors available)
• Operating Temperature: -50°C to 150°C
• Flame Retardancy:
  1. Finished product: Complies with FMVSS 302 (burn rate < 100 mm/min)
  2. Raw material: Flame retardant grade up to UL94 V-0
• Cutting Method: Hot cutting
• Packaging: Paper reel

Now

EX600 series braided sleeving is manufactured from PET monofilament. It offers good expandability for easy installation over connectors and long wire harnesses. The sleeving provides excellent abrasion and chemical resistance, with clean, hot-cut edges, and is available in multiple colors.

Applications

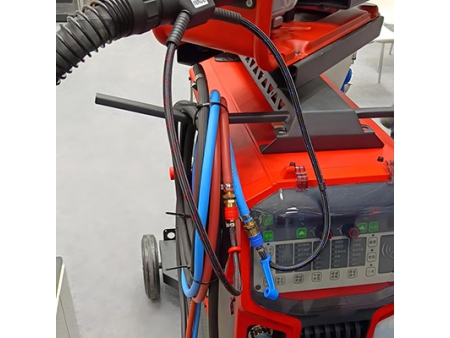

This PET monofilament braided sleeving is suitable for abrasion protection of hoses, pipes, and cables, especially in automotive engine compartments and other demanding environments.

Certifications

Parameters

Model	Flat Width (mm)	Application Range (mm)	Packaging Length (m/reel)	Item Code
EX600250301	3±1	1~5	1000	PET-003
EX600250601	6±2	3~9	500	PET-006
EX600250801	8±2	5~12	300	PET-008
EX600251001	10±2	7~15	300	PET-010
EX600251201	12±2	8~18	300	PET-012
EX600251401	14±2	10~20	300	PET-014
EX600251601	16±3	12~22	300	PET-016
EX600251901	19±3	14~25	300	PET-019
EX600252501	25±4	18~30	200	PET-025
EX600252801	28±4	20~35	200	PET-028
EX600253201	32±4	25~40	200	PET-032
EX600253801	38±4	30~45	100	PET-038
EX600255001	50±5	40~60	100	PET-050
EX600256401	64±5	45~80	50	PET-064

Available in custom cut lengths.
Custom sizes available upon request.

For detailed information, please download the product datasheet.
