141B Non Sparking Bent Striking Wrench
The 141B non sparking bent striking wrench works the same way as the 141 model. It is die-forged from copper alloy that not only gives additional strength to the structure but also helps with the ability to withstand a long time of use while delivering outstanding mechanical performance. Its spark-proof feature makes the wrench suitable for use in areas where potential flammable or explosive hazard might occur.

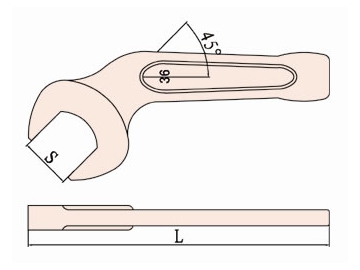

Usually used with a hammer, the wrench can provide large amount of torque to the large-sized hex heads of fasteners for loosening and tightening. It is able to fit in tight spaces. The griping face of the jaw is displaced to a 45 degree angle relative to the line of handle. This displacement allows the wrench to obtain larger areas for rotation. Additionally, the product conforms to the Q/ZBF-141B standard.
| Model | S mm | L mm | Be-Cu g | Al-Cu g |
| 17 | 140 | 155 | 140 | |
| 19 | 140 | 155 | 140 | |
| 22 | 150 | 190 | 170 | |
| 24 | 150 | 245 | 220 | |
| 27 | 175 | 420 | 380 | |
| 30 | 190 | 480 | 440 | |
| 32 | 190 | 480 | 440 | |
| 34 | 210 | 680 | 620 | |
| 36 | 210 | 680 | 620 | |
| 38 | 230 | 980 | 800 | |
| 41 | 230 | 950 | 860 | |
| 46 | 250 | 1270 | 1150 | |
| 50 | 275 | 1380 | 1250 | |
| 55 | 305 | 1780 | 1620 | |
| 60 | 315 | 2560 | 2350 | |
| 65 | 335 | 3000 | 2750 |
