180 Non Sparking Ratcheting Box Wrench Manufacturer

180 Non Sparking Ratcheting Box Wrench

Request a Quote

View All: http://bestsafetytools.com/product-1-2-33-ratcheting-box-wrench-en/134181/index.html

The 180 non sparking ratcheting box wrench is intended for use with hard-to-reach nuts or bolts in tight spaces where movement is limited. Drop-forged construction is also spark resistant, which makes the wrench suitable for use in various flammable or explosive atmospheres.

Features

This wrench uses a ratchet to enable reversing the direction of rotation of the handle in situ without detaching the socket from the nut. Simply put, when the handle is moved in the reverse direction, the socket does not move. This allows the handle to operate back and forth to tighten the nut, providing constant motion.
The ratchet mechanism consists of gear and pawl mounted on base. The gear and pawl assembly is replaceable.
The wrench conforms to Q/ZBF-180 standard.

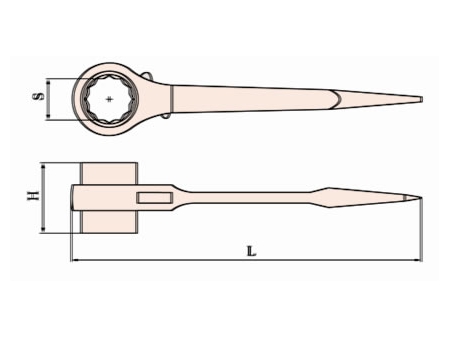

Model	S mm	L mm	H mm	Be-Cu g	Al-Cu g
180-17	17	270	47	550	490
180-19	19	270	47	550	490
180-22	22	270	50	580	520
180-24	24	280	53	620	560
180-27	27	290	56	730	660
180-30	30	300	58	800	720
180-32	32	310	60	900	810
180-36	36	320	65	1000	900
180-38	38	320	65	1150	1030
180-41	41	330	70	1500	1350

We can custom make the product based on your requirements or technical drawings, in addition to providing the above specifications.
