235 Non Sparking Flange Wedge

235 Non Sparking Flange Wedge
235 Non Sparking Flange Wedge
Request a Quote

Our 235 non sparking flange wedge is most commonly used to fill under unbalanced equipment so as to keep it level. Its rectangular cross-section can be pounded by a hammer to make it fit more tightly into the work-piece. Drop-forged construction is long-lasting, mechanically strong and stable.

Features
  • Q/ZBF-235 standard compliant
  • Used to level up equipment.

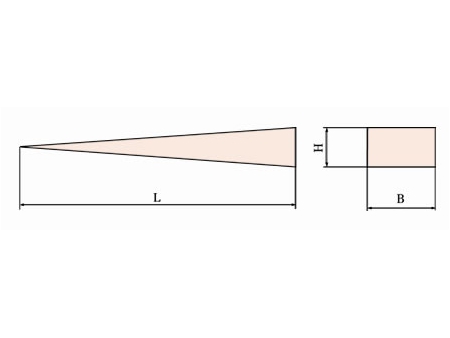

Model L
mm
B
mm
H
mm
Be-Cu
g
Al-Cu
g
235-1002 80 13 6 25 23
235-1004 100 50 10 201 185
235-1006 135 50 18 497 455
235-1008 150 40 8 200 180
235-1010 150 25 8 122 112
235-1012 150 25 13 205 185
235-1014 150 50 13 400 365
235-1016 180 32 13 305 280
235-1018 180 50 19 700 640
235-1020 200 20 30 490 451
235-1022 200 30 30 740 675
235-1024 200 40 40 1315 1200
235-1026 200 50 12 500 450
235-1028 230 40 20 751 690
235-1030 250 40 30 1230 1125
235-1032 300 50 40 2460 2250
Model L
inch
B
inch
H
inch
Be-Cu
g
Al-Cu
g
235-1001 4 3/4 1/2 110 100
235-1003 6 1 1/2 220 200
235-1005 6 1-1/2 3/4 480 435
235-1007 7 2 3/4 755 680
235-1009 8 1-1/2 1 855 770
235-1011 8-1/2 2 1-1/4 1500 1360
