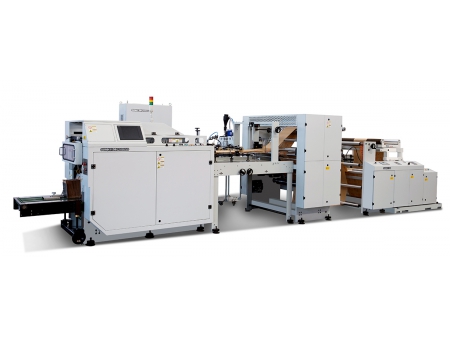

FSB650 Full-SERVO High Speed Flat & Satchel Paper Bag Machine

Request a Quote

View All: http://sunhope-machine.com/3-2-full-servo-high-speed-flat-bag-machine/325117/index.html

Sunhope developed the FSB650 full-servo high speed flat & satchel paper bag machine using German technology for reference. The machine is suitable for paper roll, printed roll paper such as kraft paper, shiny paper, and coated paper, and is used to carry out perforating, side gluing, folding, tube forming, separating, bottom folding and gluing, and final product collection in one continuous process. According to the customer's requirements, we can also add the servo pre-creasing device. This function makes sealing the bag more convenient and efficient, and the machine itself is easy to operate, making it ideal for producing a variety of paper bags, bread bags and grocery bags.

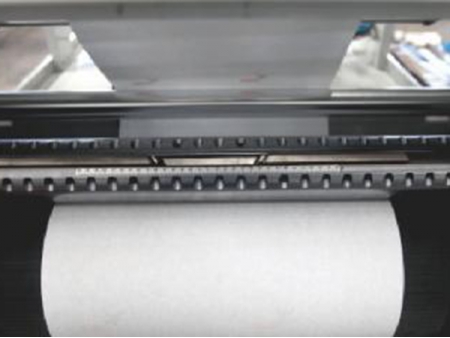

Printing Registration System

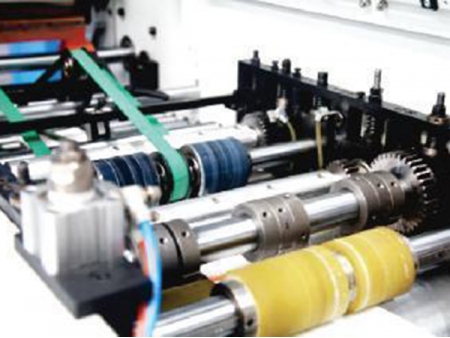

Perfect High Speed Perforating System by Servo Motor
Pre-Creasing on Bag body System by Servo Motorm

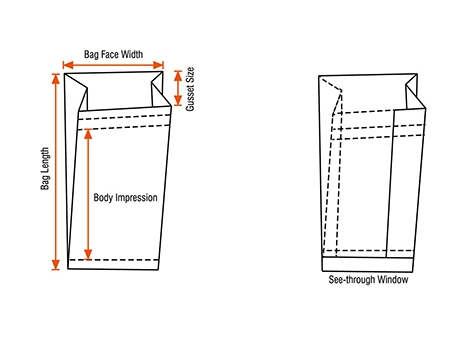

Bag Schematic Diagram

Specifications

Technical Info		FSB400	FSB650
Single Stream	Face Width (no Gusset) (mm)	60-510	80-320
	Face Width (with Gusset) (mm)	60-510	/
	Total Gusset (mm)	140	/
Dual Stream	Face Width (no Gusset) (mm)	60-230	/
	Face Width (with Gusset) (mm)	60-200	/
	Total Gusset (mm)	20-105	/
Bag Length (mm)		85-380	140-645
Gusset Size (mm)		20-140	50-100
Cutoff Length Range (mm)		105-400	145-650
Maximum Web Width (mm)		1500	910
Maximum Roll Diameter (mm)		Φ1500	Φ1500
Paper Substrate Range (gsm)		30-90	30-70
Plastic Window Width (mm)		/	50-200
Minimum Seam Overlay (mm)		20	20
Minimum Former Flap = Seam Overlay Seam Offset (mm)		25	25
Max. Speed	One Stream (bags/min)	1000	550
Max. Speed	Double Stream (bags/min)	2000	/
Total Power (kW)		520	19.65
Weight (kg)		5500	5500
Machine Size ((L×W×H) (m)		8×2.6×2.1	8×3×1.96
Options Unit Servo Window Cutting Unit DL02 Two Ply Unit 1-4 Colors Flexo Printing Unit MH1150 Hole Making Unit

Features

This machine uses a Japanese Mitsubishi electrical control system, ensuring the machine operation is stable and features a high speed and high precision. It also uses a humanized design touch screen for ease of use.
Equipped with an auto tension system and auto web guiding system, this machine can reduce waste and improve efficiency.
There are 8 servo motors that function synchronously for perforating, drawing, pre-creasing, separating, bottom folding, gluing and collecting.
The servo adjustable pre-creasing device can make two or three creasing lines on the bag body, making it easier to seal the bag and ensuring a better bag functionality.
This machine uses a German SICK print registration system, which accurately tracks printed material.
The collection unit uses a special system, sufficiently solving the collection and counting problem from minimum to maximum bag length.
