Request a Quote
Spot Welding
  • Types
  • Samples
  • Specifications
  • Features
  • Details
Resistance welding machine

Capacitor discharge spot welding machine, also referred as capacitive discharge or CD welding, stores energy from a capacitors bank which on discharging, release the current by very fast pulse. In comparison to other welding methods such as AC spot welding, it has a lower instantaneous power demand from the grid, balanced load among phases, high power factor, and the ability to provide concentrated energy to the welding area. As a result, it produces weldments with excellent surface quality and minimal deformation. This makes it suitable for welding difficult-to-weld non-ferrous metals with good thermal and electrical conductivity, and particularly ideal for stainless steel products and products with high requirements for the welding surface.

Applicable Materials

Stainless steel, silver, and other alloy materials.

Applications

Industrial production and manufacturing:
such as welding of stainless steel cookware handles, cooking pot handles, stainless steel strips, battery welding, and electronic components soldering.

Types of Capacitor Discharge Spot Welders We Provide
  • Stainless steel cookware spot welder

    For welding stainless steel cookware

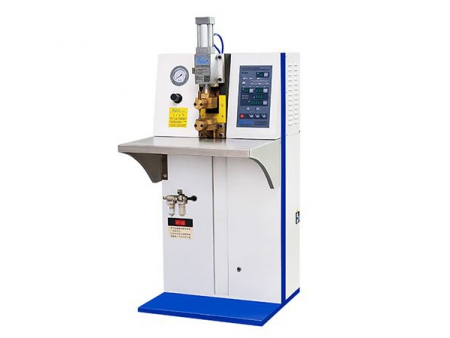

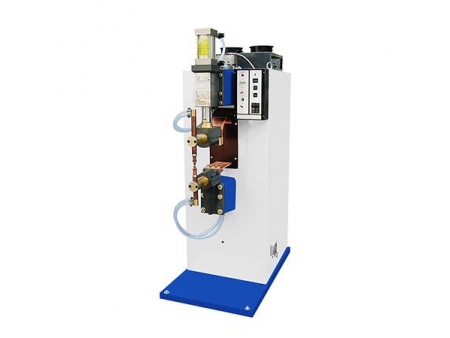

  • Capacitor discharge table spot welder

    For welding small hardware and parts, such as batteries, heating wires, and other similar components

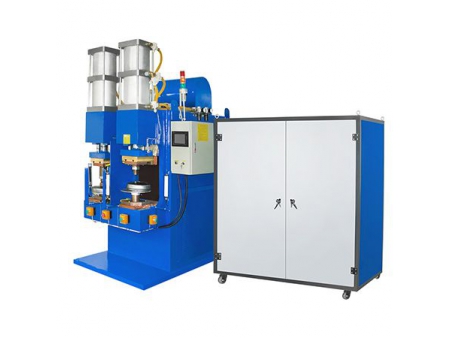

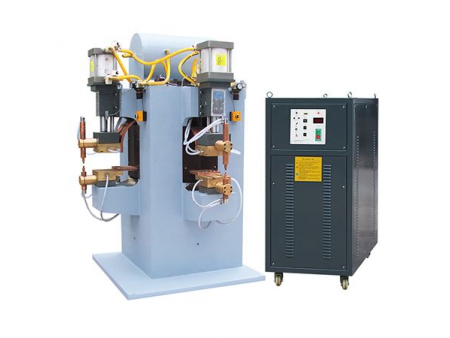

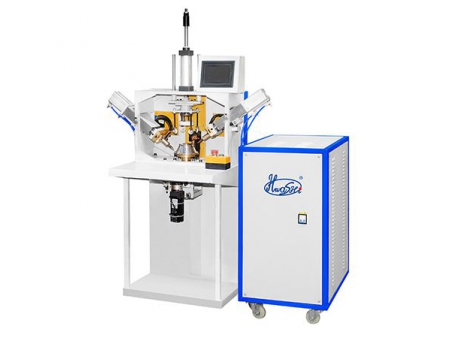

  • Dual-station capacitor discharge spot welder

    For welding stainless steel cookware, suitable for a variety of products without the need for frequent mold changes

  • Low power capacitor discharge spot welder

    For welding heating tubes

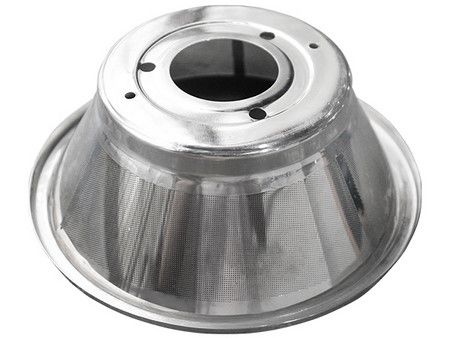

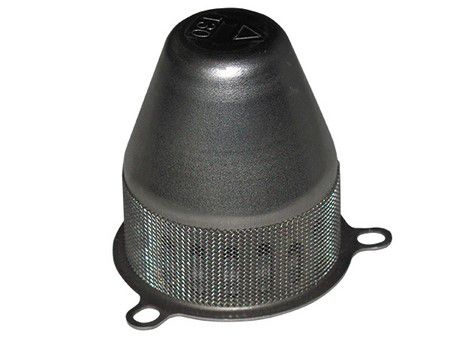

  • Stainless steel strainer spot welder

    For welding stainless steel strainer

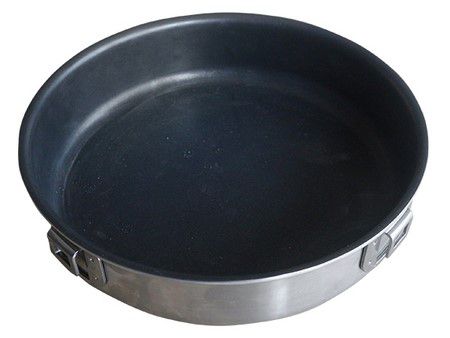

  • Cooking pot handle spot welding machine

    For seamless spot welding of coated non-stick cooking pot

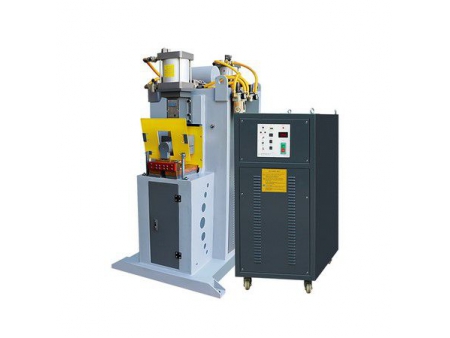

  • Automotive cap nut spot welding machine

    For welding large nuts

Welding Samples

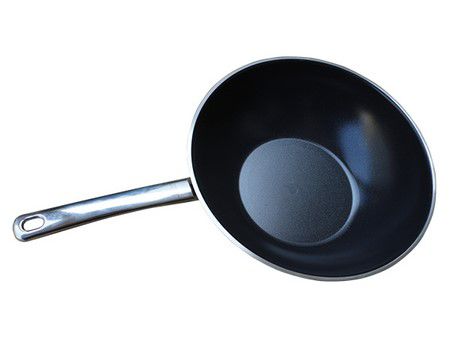

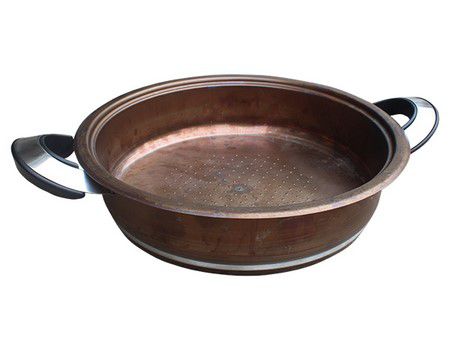

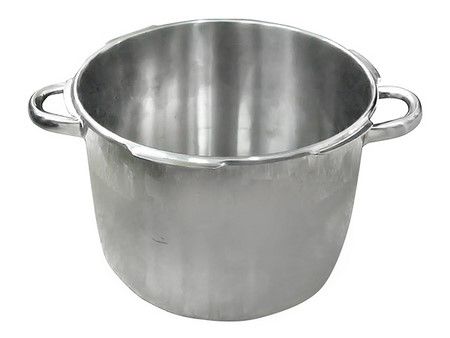

  • Kitchen pots and pans welding
  • Kitchen pots and pans welding
  • Kitchen pots and pans welding
  • Kitchen pots and pans welding

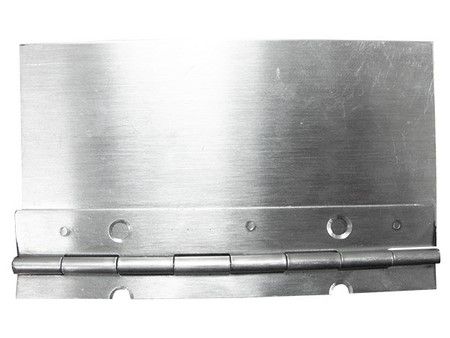

  • Daily Hardware Welding
  • Daily Hardware Welding
  • Daily Hardware Welding

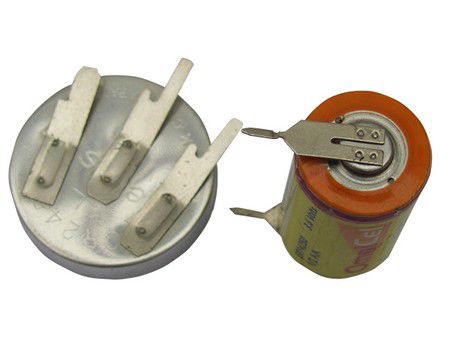

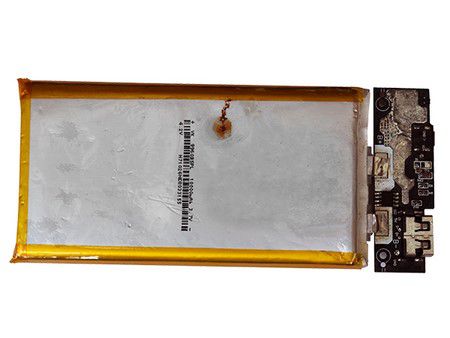

  • Battery welding
  • Battery welding
  • Battery welding
  • Battery welding
  • Electronic components soldering
  • Electronic components soldering
  • Electronic components soldering
  • Electronic components soldering
Technical Specifications
Model Input Voltage Input Power Output Power Capacitance Electrode Force Electrode Stroke
WL-C-1K 380V 1kVA 300J 3000uF 30kg 25mm
WL-C-2K 380V 2kVA 500J 4500uF 100kg 50mm
WL-C-2.5K 380V 2.5kVA 1000J 9000uF 100kg 50mm
WL-C-3K 380V 3kVA 1500J 14000uF 350kg 80mm
WL-C-5K 380V 5kVA 3000J 28000uF 350kg 80mm
WL-C-7K 380V 7kVA 4500J 42000uF 800kg 100mm
WL-C-10K 380V 10kVA 6000J 60000uF 1000kg 100mm
WL-C-12K 380V 12kVA 7000J 70000uF 1000kg 100mm
WL-C-15K 380V 15kVA 8000J 80000uF 1000kg 100mm
WL-C-20K 380V 20kVA 15000J 150000uF 1500kg 100mm
WL-C-25K 380V 25kVA 18000J 180000uF 2000kg 100mm
WL-C-30K 380V 30kVA 20000J 200000uF 2000kg 100mm
WL-C-40K 380V 40kVA 25000J 250000uF 2000kg 100mm
WL-C-50K 380V 50kVA 30000J 300000uF 2000kg 100mm
WL-C-60K 380V 60kVA 35000J 350000uF 2000kg 100mm
Features
  • Low supply consumption and no impact on the power grid. It is highly energy-efficient, requiring only 1/10 of the electricity compared to a regular AC welder.
  • Short discharge time and minimal heat impact. Welded parts are less likely to deform or change color.
  • High welding currents: suitable for multi-spot welding, projection welding, and pressure-sealing welding processes.
  • No need for water cooling, saving energy consumption.
  • Customizable electrodes and equipment functions according to different product requirements.
Details
  • Intelligent microcomputer controller

    Selectable options include DIP switch control panel, touch screen panel, or digital button panel for setting welding parameters.

  • Conductive copper tape

    Thickened copper tape aims to enhance its conductivity.

  • Customized electrodes

    Customized electrodes (can be tailored to different materials and products)

  • Customizable arm length

    Arm length can be customized according to the product size.

If you have any business inquiries or product questions, please feel free to contact us.
