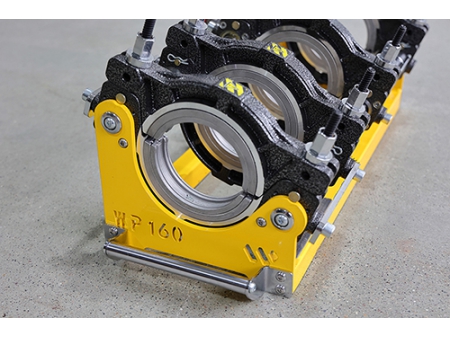

Hydraulic Butt Fusion Machine, WP160A
Request a Quote
63mm-160mm Plastic Pipe Welding Machine
The butt welding machine is ideal for butt fusion joining of HDPE, PP, PVDF, MPP pipes and fittings.
- Model: WP160A
- Welding range: 63-160 mm
- Applicable pipe diameters: 63-75-90-110-125-140-160 mm
- Power supply: 220 V/50Hz, 1PH
- Total power: 3.35 kW
- Heating plate: 1.5 kW
- Planing tool: 1.1 kW
- Hydraulic station: 0.75 kW
- Pressure adjusting range: 0-6.3 MPa
- Max temperature of heating plate: 270 ºC
- Temperature deviation: ±5 ºC
Application
WP160A hydraulic butt fusion machine is ideal for welding HDPE, PP, PVDF, MPP pipes.
Features
-
-
-
The machine frame is sturdy and distortion-free, ideally suitable for heavy-duty applications.
-
-
Steel plates of the machine frame are precisely cut to achieve high precision and aesthetic appearance.
-
-
-
Enclosed hydraulic station is designed to prevent dirt or water. LCD display panel and data logging device are optional upon request.
-
-
-
Copper coil motor has a self-locking system to prevent damages caused by misoperation. High-speed steel reducer inserts with double cutting edges are highly durable.
-
-
-
High quality resistance wire delivers excellent heating performance. The heating element is applied with superior Dupont or Daikin coating.
