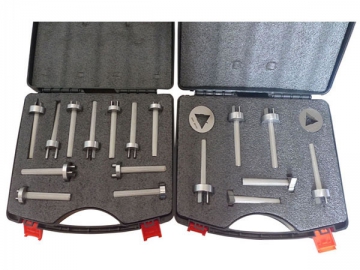

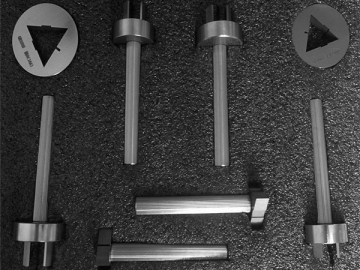

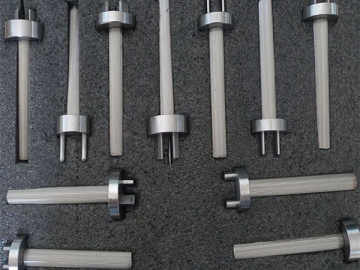

Plug and Socket Gauge HC9901
Request a Quote
View All: http://hctestequipment.com
Standards
BS 1363, BS564, VDE620,CEI 23-50, UL498, GOST 7396.1-89, JIS C8303, IS1293, AS/NZS3112, NF C61-314, SANS164-1, DS 60884-2-D1, NEN1020, SEV1011, NBN C61-112-1, SASO2203|2204, IRAM2063|2073, NBR14136, TIS 166-2535, CNS690 and etc.
Application
These gauges are designed to check and verify the dimensions of plugs and socket-outlets for household and commercial installation.
Test Sample
British, German, Italy, UL, Russia, Japan, India, Australia, French Plugs and socket-outlets for household and commercial purposes.
Feature
Manufactured according to a variety of internationally recognized standard requirements.
BS 1363
No. | Figure No. | Quantity |
1 | BS1363-1-Fig 1 | 1PC |
2 | BS1363-1-Fig 2 | 1PC |
3 | BS1363-1-Fig 5 | 1PC |
4 | BS1363-1-Fig 7 | 1SET |
5 | BS1363-1-Fig 8 | 1SET |
6 | BS1363-1-Fig 9 | 1SET |
7 | BS1363-1-Fig 10 | 1SET |
8 | BS1363-1-Fig 11 | 2 PC |
9 | BS1363-1-Fig 17 | 1SET |
10 | BS1363-1-Fig 19 | 1SET |
11 | BS1363-1-Fig 19 | 1PC |
12 | BS1363-1-Fig 23 | 1SET |
13 | BS1363-1-Fig 24 | 1SET |
14 | BS1363-2-Fig 29 | 1SET |
15 | BS1363-2-Fig 32 | 1SET |
16 | BS1363-2-Fig 33 | 1SET |
No. | Figure No. | Quantity |
1 | APPENDIX A | 1 PC |
2 | APPENDIX B | 1 PC |
3 | APPENDIX C | 1 PC |
4 | APPENDIX D | 1 PC |
5 | APPENDIX E | 1 PC |
6 | APPENDIX F | 1 PC |
7 | APPENDIX G | 1 PC |
No. | Figure No. /Instrument Name | Quantity |
1 | C1(4.2/5.3/5.3) | 3 |
2 | C2A (10A) | 1 |
3 | C2B (10A) | 1 |
4 | C2A (16A) | 1 |
5 | C2B (16A) | 1 |
6 | C3 | 1 |
7 | C4 | 1 |
8 | C5 | 2 |
9 | C6 | 1 |
10 | C7 | 1 |
11 | C8 | 1 |
12 | C9 | 1 |
13 | C10 | 1 |
14 | C11 | 1 |
15 | C12 | 1 |

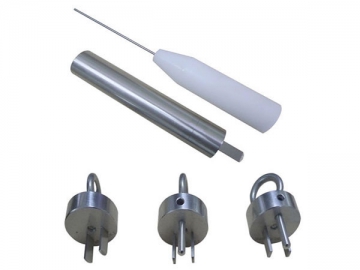

No. | Item | Figure No. | Quantity |
1 | Standard plug | UL498 Fig 73.1 | 1 |
2 | Improper insert ion test | UL498 Fig 98.1 | 2 |
3 | Test gauge | UL498 Fig 109.1 | 2 |
4 | Test pin | UL498 Fig 109.2 | 1 |
5 | 57g Grounding pin | UL498 Fig 123.3 | 1 |
6 | 113 Grounding pin | UL498 Fig 123.4 | 1 |
7 | Large probe | UL498 Fig 136.2 | 1 |
