Cordless Blender / Iron / Kettle Insert and Withdraw Endurance Tester HJ0613 Manufacturer

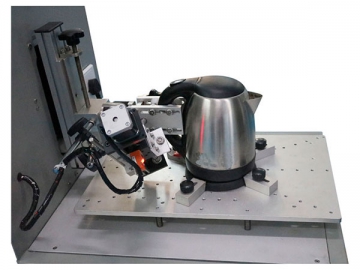

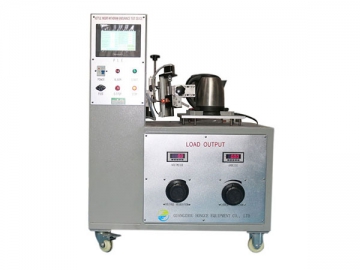

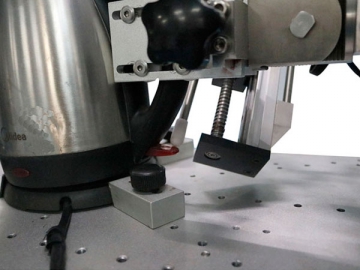

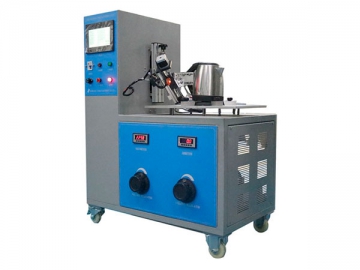

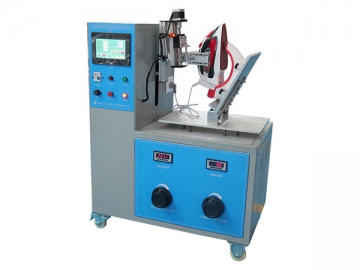

Cordless Blender / Iron / Kettle Insert and Withdraw Endurance Tester HJ0613

Request a Quote

View All: http://hctestequipment.com

Standard
IEC 60335-2-14 Clause 22.103, IEC60335-2-3 Clause 22.105, IEC60335 -2- 15 clause 22.103 and etc.

Application
Cordless electric kettles, cordless irons, cordless blenders, the contacts shall be constructed so that any electrical or mechanical failure that occurs during normal use shall not be dangerous and shall be verified by a plug-in test.

Test Sample
Cordless electric kettles, cordless irons, cordless blenders

Feature
The test device can be connected to an external load or has built-in load. The test cycles can be preset (maximum 999999), the test system can record the test cycles and conduction cycles automatically during testing, when the preset test cycles have been completed, the test device will stop testing automatically.

Parameters

Model	J0613	J0613A
Input Power	AC220V 50HZ	AC220V 50HZ
Control	Electrical control, Buttons operation	PLC control, touch screen operation
Station	Single station	Single station
Drive Method	motor-driven	motor-driven
Test Sample	Cordless water kettle	Cordless water kettle/iron/blender
insert & Plug Stroke	100mm	0-100mm, can be preset on touch screen
insert & Plug Speed	0-30cycles/min, frequency control	0-30 times/min, can be preset on touch screen
Test Cycles	0-999999, can be preset	0-999999, can be preset on touch screen
Conduction Cycles	0-999999, can be displayed	0-999999, can be displayed
Mechanical action	insert & plug action	insert & plug action and kettle switch open and close movement
Load	External 0-250V, 0-15A	Built-in 0-250V, 0-15A
Sample judgment	Judge conduction according to the current	Judge conduction according to the current
Dimensions and Weight	1000×500×1200mm, 130kg	1000×500×1200mm, 200kg
