FTP 4 Pairs cable-category 5E-100MHz PVC Sheath

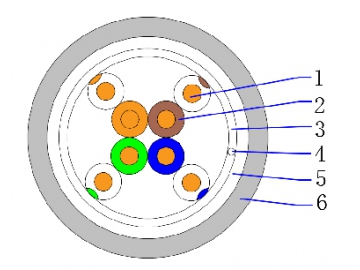

Construction：
- Conductor - Bare solid copper, dia. 0.52mm
- Insulation - HDPE, dia. 1.01mm
- Binder tape - Polyester tape
- Drain wire - Tinned copper wire 1/0.5mm
- Screen - AL-PE tape
- Jacket - PVC, nominal thickness 0.6mm
Application:
- 100Base-TX
- 100Base-T
- 100VG-AnyLAN
- 1000Base-T(Gigabit Ethernet)
- 1000Base-TX
- ATM
Core identification：
- White/Blue - Blue
- White/Orange - Orange
- White/Green – Green
- White/Brown – Brown
Standard：
- ISO/IEC11801
- ANSI/TIA-568-C.2
- YD/T1019
Temperature:
- Rated temperature:60℃,75℃
Structure characteristics：
| Approx. diameter of cable | Approx. weight of cable | Max. DC. conductor resistance at 20℃ | Max. DC conductor resistance unbalance | Min. insulation resistance | Max. capacitance | Impedance(1.0-100.0 MHz) | Delay skew(1.0-100.0 MHz) |
| mm | kg/km | Ω/100m | % | MΩ﹒km | nF/100m | Ω | ns/100m |
| 6.2 | 41 | 9.5 | 5 | 5000 | 5.6 | 100±15 | ≤45 |
Technical Performance (100m)：
| Frequency | RL | ATT(20℃) | NEXT | PHASE DELAY | PSNEXT | ELFEXT | PSELFEXT |
| (MHz) | ≥dB | ≤dB | ≥dB | ≤ns | ≥dB | ≥dB | ≥dB |
| 1 | 20 | 2 | 65.3 | 570 | 62.3 | 63.8 | 60.8 |
| 4 | 23 | 4.1 | 56.3 | 552 | 53.3 | 51.8 | 48.8 |
| 8 | 24.5 | 5.8 | 51.8 | 546.73 | 48.8 | 45.7 | 42.7 |
| 10 | 25 | 6.5 | 50.3 | 545.38 | 47.3 | 43.8 | 40.8 |
| 16 | 25 | 8.2 | 47.2 | 543 | 44.4 | 39.7 | 36.7 |
| 20 | 25 | 9.3 | 45.8 | 542.05 | 42.8 | 37.8 | 34.8 |
| 25 | 24.3 | 10.4 | 44.3 | 541.2 | 41.3 | 35.8 | 32.8 |
| 31.25 | 23.6 | 11.7 | 42.9 | 540.44 | 39.9 | 33.9 | 30.9 |
| 62.5 | 21.5 | 17 | 38.4 | 538.55 | 35.4 | 27.9 | 24.9 |
| 100 | 20.1 | 22 | 35.3 | 537.6 | 32.3 | 23.8 | 20.8 |
