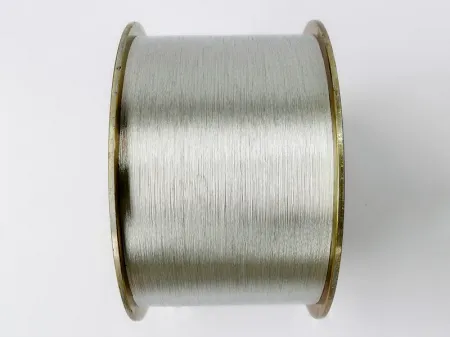

Tinned Wire
Request a Quote
Ranging from 0.02mm to 6mm
Copper, copper alloy or other metal conductors with a tin coating
Tinned wire consists of a copper, copper alloy, or other metal conductor coated with a thin layer of tin. This coating improves corrosion and oxidation resistance, helping extend the lifespan of low-voltage cables and electrical components. At ETO, we offer tinned copper wire, tinned alloy wire, tinned copper-clad steel wire, and tinned copper-clad aluminum wire, with diameters ranging from 0.02mm to 6mm. These wires can undergo drawing, annealing, and stranding to meet various industry requirements.
Specifications
Solid Wire
| Wire Type | Wire Diameter Tolerance (mm) | Number of Wires | Elongation (%) | Tensile Strength (Mpa) | Resistance (Ω/Km) |
| 0.100±0.003 | 1 | ≤5 | ≥700 | ≤3200 | |
| 0.030-0.032 | 1 | ＞1 | ＞750 | ＞29400 |

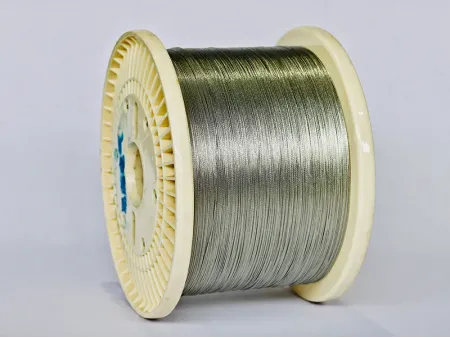

Stranded Wire
| Wire Type | Wire Diameter Tolerance (mm) | Number of Wires | Length of Lay (mm) | Direction of Lay | Elongation (%) | Tensile Strength (Mpa) | Resistance (Ω/Km) |
| ＜0.052 | 72 | 10-12 | S | ＞6.0 | 250-287 | 105-123 at 20℃ | |
| ＜0.052 | 44 | 6-10 | S | ＞6.0 | 250-284 | 190-215 at 20℃ | |
| - | 168 | 13±10% | S | ≥6 | - | 50.5-58.1 | |
| - | 672 | 9.2-10.8 (inside) 16.5-19.4 (outside) | S | ≥6 | - | 12.2-14.2 |
Features
- The tin coating acts as a protective barrier, preventing oxidation and sulfurization, which helps maintain conductor performance over time.
- Improved solderability makes tinned wire easier to work with, ensuring strong and reliable connections in electronic components.
- A smooth, uniform tin layer ensures consistent quality, free from peeling, discoloration, cracks, or surface defects.
- The bond between the tin and conductor remains stable even in high-temperature environments, this makes tinned wires suitable for demanding applications.
