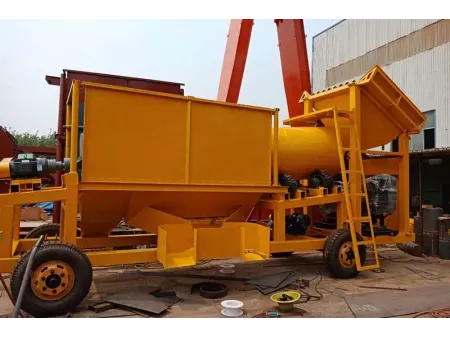

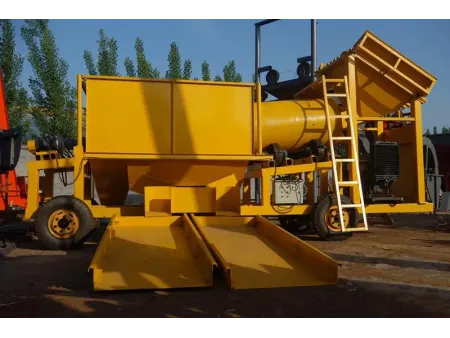

Gold Trommel Wash Plant
Gold Mining Equipment
Designed for recovery of gold using trommel screen
Gold Trommel Wash Plants are perfect for extracting gold from placer deposits, including ancient riverbeds, alluvial gold, and tailings from ball mills. These plants are effective in recovering gold, gemstones, and zircon sands.
If your raw material contains a high concentration of iron powder, a magnetic separator may be necessary to remove the iron before recovering gold, gemstones, and zircon sands, as iron can interfere with recovery.
This equipment consists of several gravity-based mining components, with multi-stage screening and washing processes. After processing, the heavy mineral concentrate has a concentration ratio of up to 1:1000, with recovery rates of 90% or more.
Contact us now to explore how this solution can help optimize your gold extraction!
- Trommel Wash Plant In Russia
- Gold Trommel Wash Plant in Kyrgyzstan
- Gold Trommel Wash Plant in Indonesia
- Trommel Wash Plant in Uganda
- Gold Trommel Wash Plant in Indonesia
- Gold Trommel Wash Plant in Ghana
| Model | ||||
| Performance | Working Capacity | 30-50m³/h | 100-150m³/h | 200-300m³/h |
| Main Power | Engine Power | 50kW | 100kW | 200kW |
| Feeder Hopper | Size | 2000*2000mm | 3000*2200mm | 3800*3000mm |
| Trommel | Size | 1000*3000mm | 1400*4000mm | 1800*5000mm |
| Power | 7.5kW | 11kW | 18.5kW | |
| Chute with Carpet | Size | 2000*6000mm | 2000*6000mm | 2000*6000mm |
| Quantity | 1 | 2 | 4 | |
| Water system | Pump Power | 18.5kW | 30kW | 45kW |
Brands: Cummins, Mitsubishi, Weichai
