Heat Shrink Joints

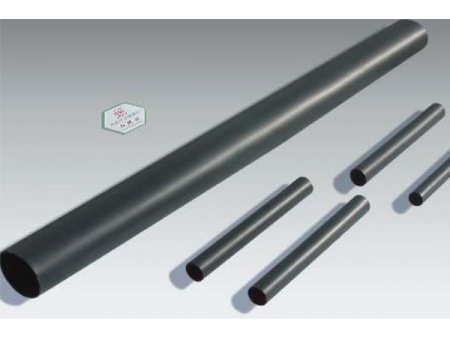

Low Voltage Heat Shrink Joint
Heat shrink joints link cables to cables and protect cable joints from water and any potential contamination. This cable joint is applicable to cables with different cross sections and different cores, including single-core cables, two-core cables, three-core cables, four-core cables and five-core cables. We also provide customization services, for instance, the laser engraving of your company’s logo on the surface of the joint. Once you have ordered, we will carry out production at full steam to ensure swift delivery of the products.
- Excellent insulation performance;
- Easy installation;
- Complete range of specifications
| Item | Tests | Requirements | Results | Conclusions |
| 1kV Heat Shrink Joint | 1min high-frequency pressure test | No flashover and breakdown under 4kV electricity | No flashover and breakdown | Meet the requirement |
| continuous extreme temperature (3 times) | 5h heating (keep the temperature at 75℃） 3h cooling No material deformation | No deformation | Meet the requirement | |
| 4h high-frequency pressure | No flashover and breakdown under 24kV electricity | No flashover and breakdown | Meet the requirement |
Medium Voltage Heat Shrink Joint
Heat shrink joints link cables to cables and protect cable joints from water and any potential contamination. This medium-voltage heat shrink joint is produced in a lined connector insulation design that is applicable to medium-voltage cables rated from 6kV to 36kV with different inner dimensions and cores, including single-core cables and three-core cables. Customization services will also be provided, for instance, the laser engraving of your company’s logo on the surface of this heat shrink joint. Once you have purchased, we will carry out production to ensure fast delivery.
- Customization service;
- Excellent insulation performance;
- Easy installation;
- Complete range of specifications;
