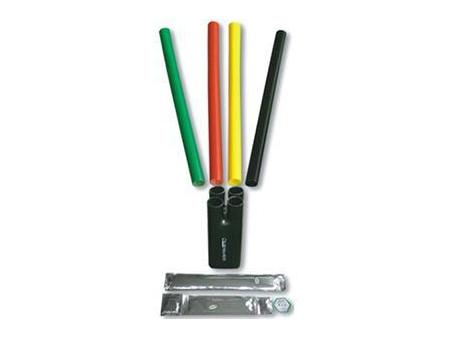

1kV Heat Shrink Terminations and Joints
Request a Quote
- Heat shrink joints
- Heat shrink terminations
Applications
1kV heat shrink terminations and joints are suitable for various cables with different diameters and are mainly used for low voltage (no more than 1kV) heat shrink terminations and joints. It has some special advantages such as ease of use with a simple design, strong UV resistance, and power supplied immediately after installation.
| Type | Size | Cable range(mm2) | |
| 1kV plastic power cable 2- cores | termination | 1kVRST-2/0 | 10～16 |
| 1kVRST-2/1 | 25～50 | ||
| 1kVRST-2/2 | 70～120 | ||
| 1kVRST-2/3 | 150～240 | ||
| 1kVRST-2/4 | 300～400 | ||
| joint | 1kVRSJ-2/0 | 10～16 | |
| 1kVRSJ-2/1 | 25～50 | ||
| 1kVRSJ-2/2 | 70～120 | ||
| 1kVRSJ-2/3 | 150～240 | ||
| 1kVRSJ-2/4 | 300～400 | ||
| 1kV plastic power cable 3-cores | termination | 1kVRST-3/0 | 10～16 |
| 1kVRST-3/1 | 25～50 | ||
| 1kVRST-3/2 | 70～120 | ||
| 1kVRST-3/3 | 150～240 | ||
| 1kVRST-3/4 | 300～400 | ||
| joint | 1kVRSJ-3/0 | 10～16 | |
| 1kVRSJ-3/1 | 25～50 | ||
| 1kVRSJ-3/2 | 70～120 | ||
| 1kVRSJ-3/3 | 150～240 | ||
| 1kVRSJ-3/4 | 300～400 | ||
| 1kV plastic power cable 4-cores | termination | 1kVRST-4/0 | 10～16 |
| 1kVRST-4/1 | 25～50 | ||
| 1kVRST-4/2 | 70～120 | ||
| 1kVRST-4/3 | 150～240 | ||
| 1kVRST-4/4 | 300 | ||
| 1kVRST-4/5 | 400 | ||
| 1kVRST-4/6 | 500 | ||
| joint | 1kVRST-4/0 | 10～16 | |
| 1kVRST-4/1 | 25～50 | ||
| 1kVRST-4/2 | 70～120 | ||
| 1kVRST-4/3 | 150～240 | ||
| 1kVRST-4/4 | 300 | ||
| 1kV plastic power cable 5-cores | termination | 1kVRST-5/0 | 10～16 |
| 1kVRST-5/1 | 25～50 | ||
| 1kVRST-5/2 | 70～120 | ||
| 1kVRST-5/3 | 150～240 | ||
| 1kVRST-5/4 | 300 | ||
| joint | 1kVRSJ-5/0 | 10～16 | |
| 1kVRSJ-5/1 | 25～50 | ||
| 1kVRSJ-5/2 | 70～120 | ||
| 1kVRSJ-5/3 | 150～240 | ||
| 1kVRSJ-5/4 | 300 | ||
