Heat Shrink Anode Cap
Request a Quote

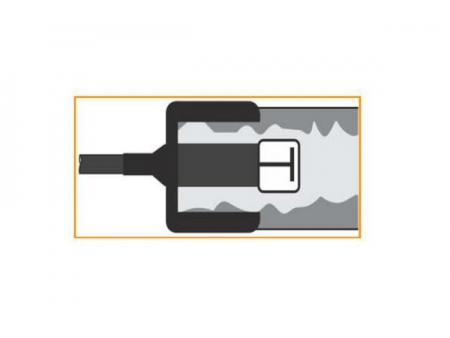

This heat shrink anode cap protects and insulates the lead wire and anode. It is made of cross-linked polyolefin and has adhesive lining that can make a safe and watertight bond with cables. Apart from these advantages, this cable anode cap is resistant to different weathers, salt spray and moisture.
Technical Data
Property | Test Method | Standard Value |
Tensile Strength | ASTM-D-638 | ≥12MPa |
Elongation at Break | ASTM-D-638 | ≥300% |
Volume Resistivity | IEC 60093 | ≥1× Ω.cm |
Dielectric Strength | IEC 60243 | ≥15kV (mm) |
Brittle Temperature | ISO 974 | -40℃ |
Hardness (Shore A) | ISO 868 | ≥80 |
Water Absorption (23±2)℃ 24h | ISO 62 | ≤0.1% |
Heat Shock | 160℃, 4h | No Crack |
