AKH-0.66 I series current transformers are featured by superior look, small size, easy installation and high measuring accuracy. These CE certified current transformers allow single cable, multiple cables or single busbar to pass through the opening of the CT. As an AC current signal acquisition component, it is generally used in conjunction with measuring instruments, and is widely used in electrical complete sets.

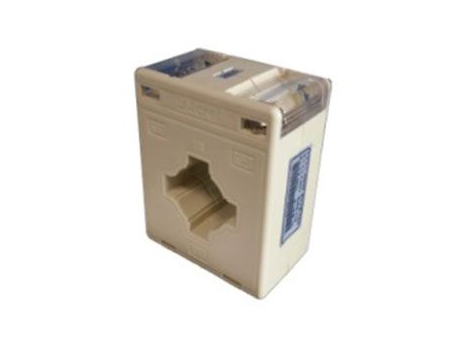

Solid Core Current Transformer, AKH-0.66/I 30I
- Measurement: alternating current (AC)
- Accuracy: Class 0.2/Class 0.5/Class 1.0
- Primary current input: 15~600A AC
- Application: on busbar or cable
- Rated voltage: 660V AC
- Rated frequency: 50~60Hz
- Installation: fixed by sheet metal/fixed by clutch cover/35mm DIN rail
- Loop count of cable: 1~5 loops
- Standard & Certificate: IEC/EN61869-1, IEC/EN61869-2, CE;

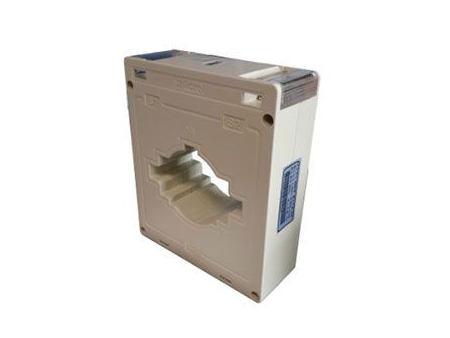

Solid Core Current Transformer, AKH-0.66/I 40I
- Measurement: alternating current (AC)
- Accuracy: Class 0.5/Class 1.0
- Primary current input: 10~1000A AC
- Application: on busbar or cable
- Rated voltage: 660V AC
- Rated frequency: 50~60Hz
- Installation: fixed by sheet metal/fixed by clutch cover/35mm DIN rail
- Loop count of cable: 1~10 loops
- Standard & Certificate: IEC/EN61869-1, IEC/EN61869-2, CE;

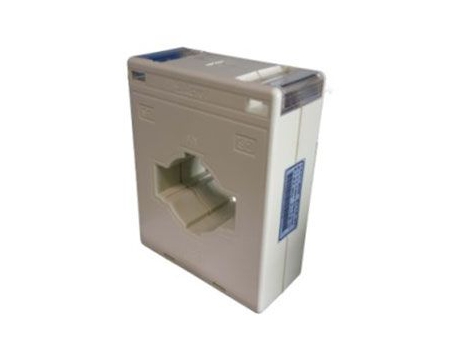

Solid Core Current Transformer, AKH-0.66/I 60I
- Measurement: alternating current (AC)
- Accuracy: Class 0.2/Class 0.5/Class 1.0
- Primary current input: 150~2500A AC
- Application: on busbar or cable
- Rated voltage: 660V AC
- Rated frequency: 50~60Hz
- Installation: fixed by sheet metal/fixed by clutch cover/35mm DIN rail
- Loop count of cable: 1
- Standard & Certificate: IEC/EN61869-1, IEC/EN61869-2, CE;

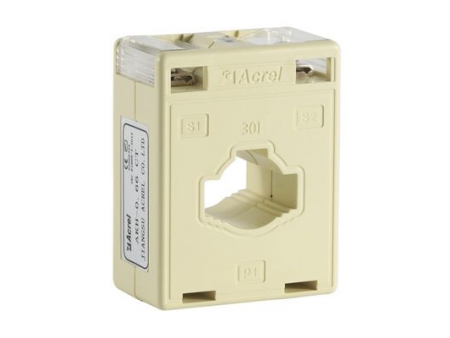

Solid Core Current Transformer, AKH-0.66/I 80I
- Measurement: alternating current (AC)
- Accuracy: Class 0.2/Class 0.5/Class 1.0
- Primary current input: 150~3000A AC
- Application: on busbar or cable
- Rated voltage: 660V AC
- Rated frequency: 50~60Hz
- Installation: fixed by sheet metal/fixed by clutch cover/35mm DIN rail
- Loop count of cable: 1 loop
- Standard & Certificate: IEC/EN61869-1, IEC/EN61869-2, CE;
