Dynamic Balancing Measuring System

Request a Quote

Website: http://balancingmachine-en.com/1-5-5-dynamic-balancing-measuring-system.html

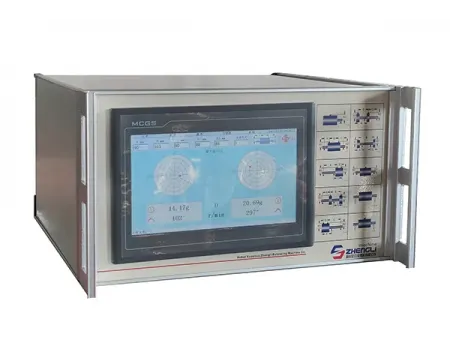

ZL-210

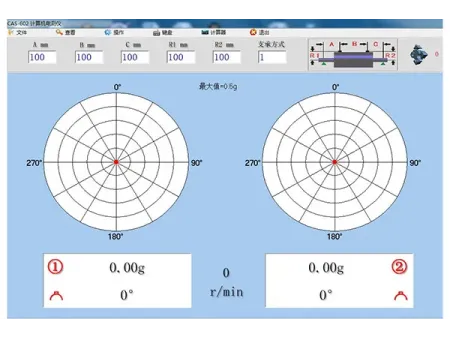

Balancing machine measurement device with touch screen

The measuring device adopts an advanced embedded industrial computer control platform, delivering high automation, precise balancing accuracy, wide adaptability, and a clear, intuitive display. Equipped with a touch screen, its ease of operation and reliability make it an ideal balancing measuring solution for factories, research institutes, and defense applications.

The system measures vibration signals from rotating components to detect unbalance caused by uneven mass distribution. Based on this measurement, corrections can be applied by adding or removing weight on the rotor, eliminating the imbalance. This process effectively reduces vibration and noise, while extending the service life of the balancing equipment.

Specifications

Applications	Hard-bearing and soft-bearing balancing machines
Balancing speed	100-20000r/min
Min. achievable residual unbalance (eMar)	0.2gmm/kg
Unbalance reduction ratio (URR) per cycle	>95%
Ambient temperature	0-60°C
Ambient humidity	5%-95%
Power supply	187-253V, 45-60Hz

Features

NTEL8051 chip delivers strong anti-interference performance with safe and reliable operation
Automatic speed lock ensures accurate measurement by automatically stabilizing speed readings
Offers six support configurations, including internal support, external support, left overhung, and right overhung, to accommodate different rotor types
Utilizes an automatic programmable amplifier and high-performance filters for precise signal processing
Can be equipped with a mini printer for immediate test result output
