Prone Leg Curl
Technical Parameters
Model | LDLS-025 |
Name | prone leg cur |
Place of origin | Dezhou, Shandong, China. |
Dimension (mm) | 1700*1110*1710 |
Standard steel weight stack | 100kg (steel) |
Net weight | 300kg |
Lead time | 30days |
Main Muscle Trained: Leg Muscle, Hamstring
Main Features of the Strength Equipment
1. Unique shape: the appearance of the strength training machine is designed like a land ship; flat oval pipe is adopted
2. LDLS series is an assembly of all of the common muscle training equipment, with 20 single-functional training devices included.
3. The reasonable moving track and movement structure will satisfy the exercise requirements of different groups of people
4. Our consideration of ergonomics and human factors adds to the fitness equipment's effectiveness.
5. The monitor with auto counting function displays the time intuitively, helping to enhance users' comfort greatly.
Cable | inner metal diameter: 4.8mm; outer thickness: 1.2mm |
Square tube | 50*150mm; thickness: 3mm; high strength steel tube and internally lubricated cables |
Pulley | Aluminum |
Welding technique | OTC welding |
Certificates | CE, ISO9001, RoHS |
Customization service | available |
Powder coating | 2 rounds (silver/ black/ dark grey/ white/ red) |
Painting color | optional |
Applications | gym, exercise club, hotel gym |
Tire | PU foam with synthetic leather |
Weight stack | made of steel |
Material | Q235 steel; 60*120*3mm |
Details of the Gym Strength Equipment
1. The frame

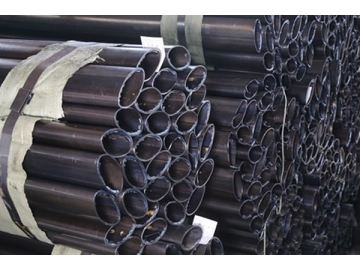

● Streamlined design with 50*150*2.5mm high-strength stainless steel flat oval tube
● The frame is welded on the steel base directly to ensure the system' s stability
● With the intention of both protecting the floor and preventing slipping, we especially set a rubber mat under the base

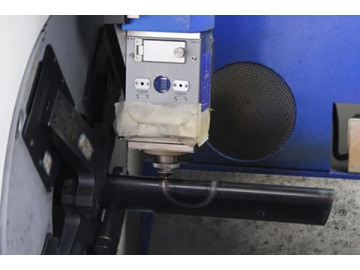

● All of the machine parts are cut precisely
● At the welding point, a meticulous polishing is given to ensure the aesthetics
● Powder coating treatment is required to enhance the durability of the fitness equipment
● Lightweight steel weight stack and smooth electroplated slider

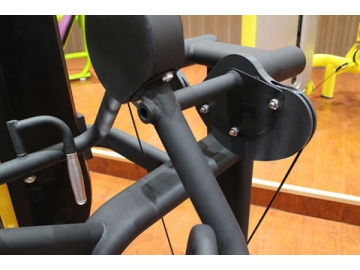

2. Steel cable and pulley
● 7*19 military steel cable covered by Nylon, with lubrication device equipped
● The glass fiber made pulleys with diameter of both 12cm and 15cm are prepared.

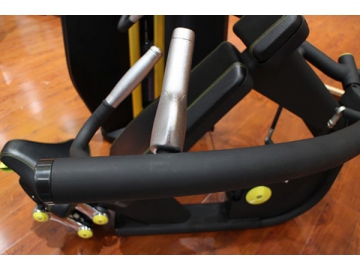

3. The Handles
● The rubber compound handle is resistant to sweet and abrasion
● Aluminum casting technique is adopted
4. Seat and backrest
● EVA foam injection molding technique is employed for the cushion to prevent deformation
● All of the edges are folded and sewed to add to the cushion' s durability

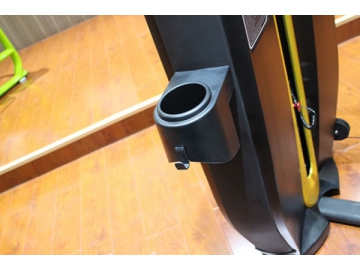

5. The part for placing bottles

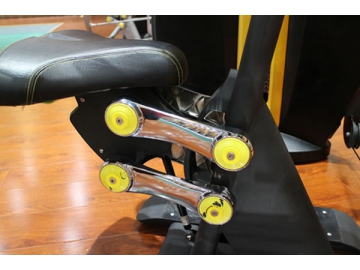

For our gym exercise equipment, Land Fitness had learnt from Germany for the fashionable and prudent designing concept. The buffer structure with torsion spring, and the multi-gear leg press foam makes it suitable for different people. With the considerate part for placing bottles, users are able to replenish water at any time.

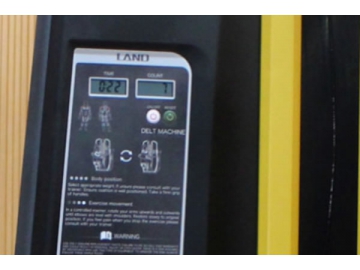

6. Fitness indicator
We have set a fitness indicator for our strength equipment to guide the users with proper training methods.

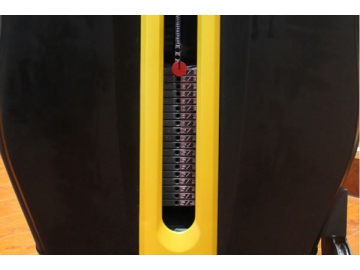

7. Weight stack with magnetic pin
8. Rubber mat under the equipment
