GZPK Series

Tablet press machine combining high automation and precision in tablet production

65,000 to 95,000 Tablets Per Hour
Up to 20 mm Tablet Diameter
Up to 20 mm Length of Irregular Tablet

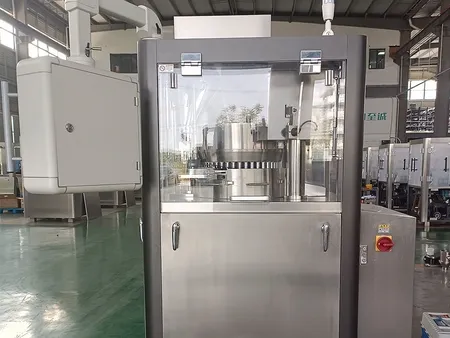

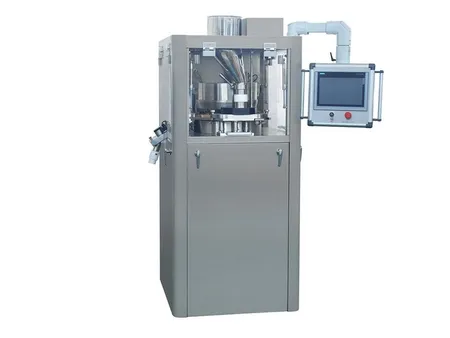

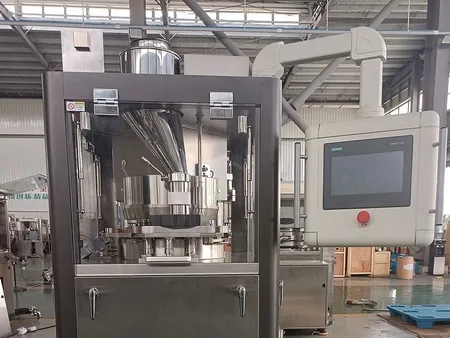

The high speed tablet press is a highly advanced machine designed for the pharmaceutical industry. It combines automation technology with high-precision control to ensure efficient and accurate tablet production. Equipped with a Siemens PLC system and a touchscreen interface, it offers intuitive operation and significantly enhances production efficiency.

With its intelligent automated control features, the high speed tablet pressing machine includes automatic tablet weight adjustment, hydraulic system stabilization, and fault alarm protection. These functions reduce labor costs, improve product quality, and ensure high compliance rates. The reject system for non-conforming tablets ensures that every tablet produced meets the required standards, delivering a reliable solution for high-quality pharmaceutical manufacturing.

Applications

The high speed tablet press is designed to produce a wide range of conventional tablets, such as vitamin tablets, anti-allergy tablets, and digestive tablets.

Key Features

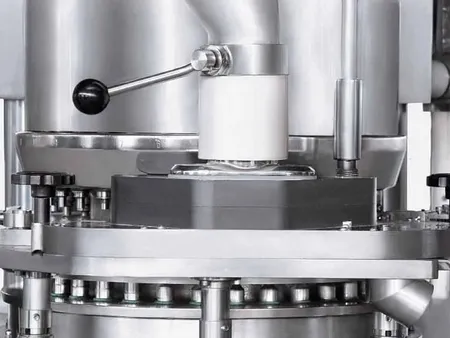

Equipped with high-precision TEDEA-HUNTLEIGH sensors to monitor pressure in real time and automatically adjust powder filling depth.
Adjusts tablet weight and reduces material variance automatically to ensure uniformity.

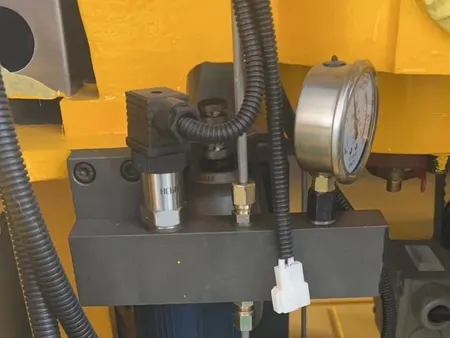

Users can set upper and lower limits for hydraulic pressure, ensuring stable and reliable operation.
Includes multiple alarm and fault protection features, such as door/window safety, low lubrication, and overload alarms.
Flexible reject system automatically identifies and removes non-conforming and defective tablets, either individually or in batches, ensuring quality control.

Specifications

Model	GZPK-15	GZPK-17	GZPK-20
Production Capacity	65,000pc/h	75,000pc/h	95,000pc/h
Number of Stations	15	17	20
Max. Tablet Diameter	25mm	16mm	13mm
Max. Length of Irregular Tablet	25mm	18mm	16mm
Max. Main Pressure	100kN	80kN	80kN
Max. Pre-pressure	12kN	12kN	12kN
Max. Filling Depth	20mm	16mm	16mm
Die Diameter	38.1mm	30.16mm	24.01mm
Punch Length	133.5mm	133.5mm	133.5mm
Tablet Thickness Range	0.5-10mm	0.5-8mm	0.5-8mm
Total Power	5.5kW
Machine Weight	675kg
Machine Dimensions	680×650×1690mm
