Rotary Tablet Press

Request a Quote

View All: http://pharmaequip-en.com/1-1-2-rotary-tablet-press.html

Pharmaceutical Machinery

Solid Dosage

ZP Series

Tablet press machine in strict compliance with GMP requirements

9,000 to 16,200 Tablets Per Hour
Up to 20 mm Tablet Diameter

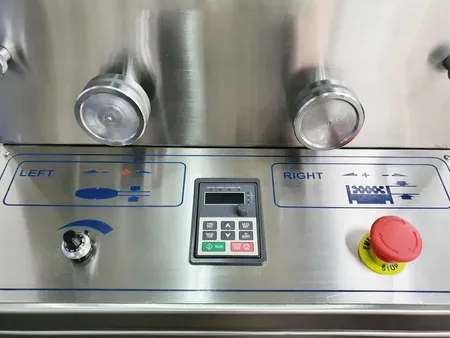

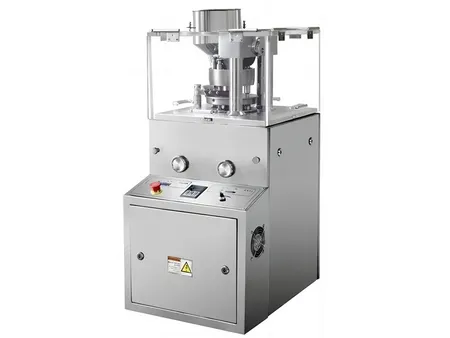

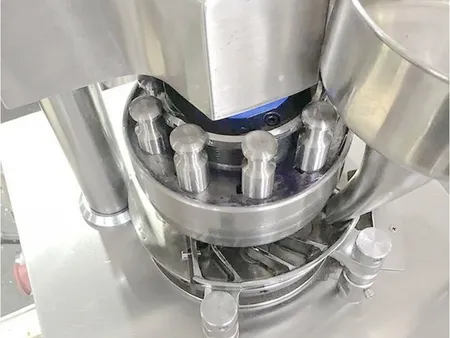

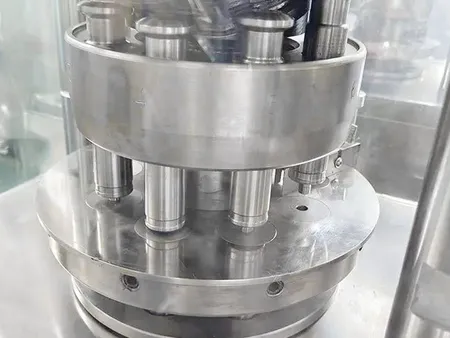

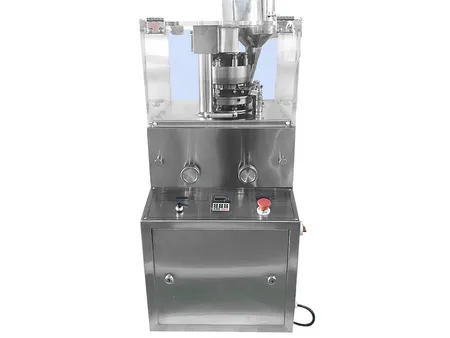

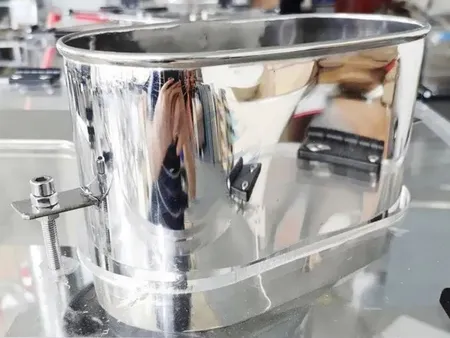

The rotary tablet press is a compact, electrically powered tablet press designed for ease of use and maintenance. Featuring adjustable filling depth, tablet pressure, and thickness, this tablet making machine ensures precise control and consistent production. Its intuitive layout of controllers and operating components simplifies operation, while its construction adheres to GMP standards. The tablet pressing chamber is completely separated from the transmission mechanism, and all parts in contact with the granulated materials are made of stainless steel or specially treated for non-toxicity and corrosion resistance. The tablet pressing chamber is enclosed with transparent organic glass, ensuring protection against contamination.

Applications

This versatile rotary tablet press is widely used in industries such as pharmaceuticals, food, ceramics, and research institutions. It is ideal for compressing powder granules into tablets, with a production capacity of 9,000–16,200 tablets per hour and a tablet diameter range of 5–20 mm.

Specifications

Model	ZP-5B	ZP-7B	ZP-9B
Dies	5	7	9
Max. Pressure	60kN	60kN	60kN
Max. Tablet Diameter	20mm	20mm	20mm
Max. Filling Depth	15mm	15mm	15mm
Max. Tablet Thickness	6mm	6mm	6mm
Turret Speed	30rpm	30rpm	30rpm
Production Capacity	9,000pc/h	12,600pc/h	16,200pc/h
Motor Power	2.2kW	2.2kW	2.2kW
Machine Dimensions	480×630×1100mm	480×630×1100mm	480×630×1100mm
Machine Weight	360kg	360kg	360kg
