VFD Compatible Deep Well Pump Motor

Request a Quote

View All: http://semc-motors.com/1-1-8-vfd-compatible-deep-well-pump-motor.html

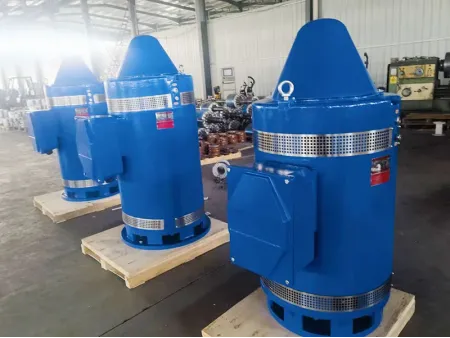

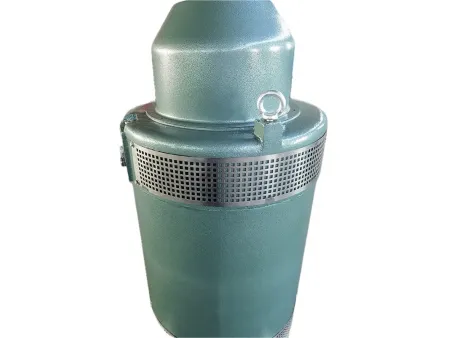

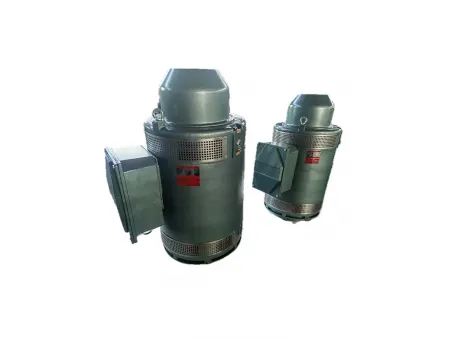

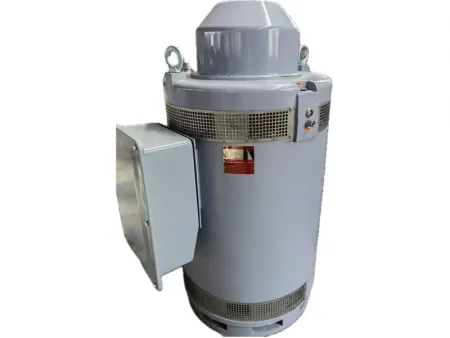

Vertical hollow shaft motor for operating in deep-well pump applications

Our VFD compatible deep well pump motor is a high-voltage squirrel cage rotor three-phase asynchronous motor, capable of driving various vertical pumps such as vertical mixed-flow pumps, long shaft deep well pumps, axial flow pumps, agitator tanks, and other equipment. It is suitable for use in high-rise buildings, industrial, and agricultural drainage, and irrigation water facilities.

Engineered for machinery and systems with high axial forces, the VFD Compatible Deep Well Pump Motor delivers robust performance for demanding deep-well applications. It adheres to IEC or NEMA standards, ensuring seamless installation compatibility across global systems. With customizable IP55 or IP67 protection ratings tailored to client needs, this motor offers reliable operation in diverse environments.

Insulation class: class F/class H
Temperature rise: class B/ class F temperature rise
Voltage: 380V-415V
Frequency: 5Hz/50Hz/75Hz/90Hz
Service factor: 1.15
Max. operating temperature: 55℃
Altitude: 2000m
Protection degree: IP23/IP55, TEFC, EXII BT4
IEC design, oil lubricated bearings, special balancing
Equipped with steel ball type anti-reverse mechanism
Number of poles: 2/4/6/8/10/12 poles

Specifications

(380-415V, 3-phase, IE3 efficiency)

Model	Rated Power (kW)	Speed (RPM)	Rated Voltage (V)	Efficiency (%)	Axial Thrust Load (N)	Weight (kg)
YLBVF280-1-4	110	1800	380~415	95.8	39200	1220
YLBVF280-2-4	132	1800	380~415	95.8	39200	1355
YLBVF280-3-4	150	1800	380~415	96.2	39200	1490
YLBVF280-4-4	185	1800	380~415	96.2	39200	1630
YLBVF315-1-4	185	1800	380~415	96.2	47150	1900
YLBVF315-2-4	200	1800	380~415	96.2	47150	2020
YLBVF315-3-4	225	1800	380~415	96.2	47150	2100
YLBVF315-4-4	260	1800	380~415	96.2	47150	2180
YLBVF355-1-4	280	1800	380~415	96.2	58930	2940
YLBVF355-2-4	315	1800	380~415	96.2	58930	3050
YLBVF355-3-4	355	1800	380~415	96.2	58930	3180
YLBVF355-4-4	400	1800	380~415	96.2	58930	3310
YLBVF355-5-4	450	1800	380~415	96.2	58930	3450

To ensure optimal performance of the VFD Compatible Deep Well Pump Motor, replace the lubricant (preferably ZL-3 lithium-based grease) every 5,000 hours of operation or if bearings overheat, filling to half the bearing space for 2-pole motors or two-thirds for 4/6/8-pole motors. Regularly monitor bearing vibration and noise, and promptly replace bearings if radial clearance exceeds standards, such as 0.3mm, to maintain reliable operation in demanding deep-well applications.
