YZP Series
Three-phase asynchronous AC motor using VFD for speed control in crane and metallurgical applications

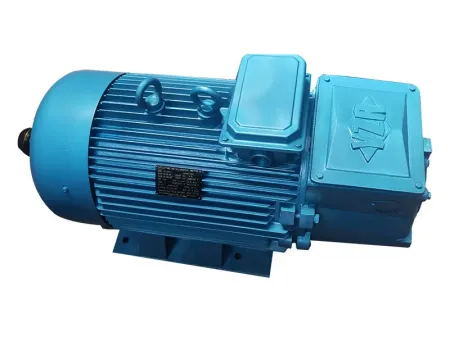

Our VFD compatible crane-metallurgical motors (YZP series) are three-phase asynchronous AC motors with VFD speed control, ideal for crane and metallurgical applications. They offer high overload capacity, large capacity, robust mechanical strength, broad speed control range, and smooth operation. Compliant with IEC34-1 and GB755 standards, these motors present optimum performance equivalent to international standards from the 1990s. They are suitable for various cranes or metallurgical equipment, as well as frequent starting, braking, and reversing.

  • Frame sizes: 112-1000mm
  • Rated voltage: 380V
  • Rated frequency: 50Hz
  • Frequency range: 3-100Hz
  • Number of poles: 2/4/6/8 poles
  • Protection degree: IP54
  • Insulation class: class F/class H
  • Duty cycle: S3
  • Mounting type: horizontal
  • Cooling method: IC416
Features
  • Excellent overload capability and mechanical strength
  • Stepless speed control with a wide range of adjustable speed
  • Insulation materials resistant to high-frequency voltage shocks
