YZBP/YLZBP Series
High voltage electric motor

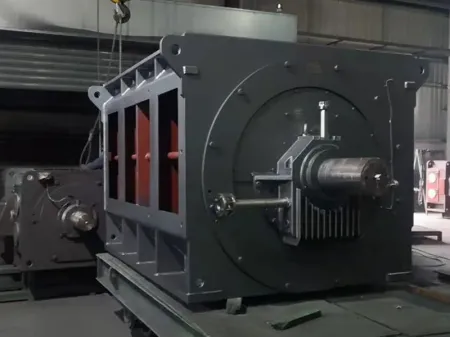

Our VFD compatible high voltage motors (YZBP/YLZBP series) feature a box structure with a compact design and an independent motor cooling system, maintaining low temperatures across the full speed range and offering strong overload capacity. The optimized slot design can withstand the impact of VFD Du/Dt on motor insulation, making them suitable for complex working conditions. Besides, these motors are highly reliable for rolling mill operations.

  • Center height: 710-1120mm
  • Rated power: 700-7500kW
  • Number of poles: 4-12 poles
  • Voltage: 690V/3300V
  • Cooling method: IC86W
  • Protection degree: IP55
  • Mounting type: IMB3, IMV1, IMV2 (horizontal)
  • Start mode: variable frequency starting
  • Operation mode: power frequency operation
  • Insulation class /temperature rise: class F/class B
