YD-P10R

Designed to deliver exceptional value, our YD-P10R UV flatbed printer is the result of a decade's worth of innovation in printing technology. With its sturdy construction and advanced design, it ensures reliable performance, durability, and an extended lifespan, making it a smart investment for any business.

This printer has some outstanding features, for example, it dries the ink fast with UV-LED lights, automatically detects how high your printing material is, and has a strong system to hold everything in place. New functionalities include temperature control for ink cartridges, adapting seamlessly to any environment, and an intuitive ink level indicator with an alert system, ensuring your printing process is smooth and uninterrupted.

Choosing our UV flatbed printer means more than just acquiring a printing machine; it means gaining a strategic advantage and a partner committed to your success. With our comprehensive after-sales support, you can rest assured that you have the backing you need to explore new creative horizons and elevate your printing projects to new heights.

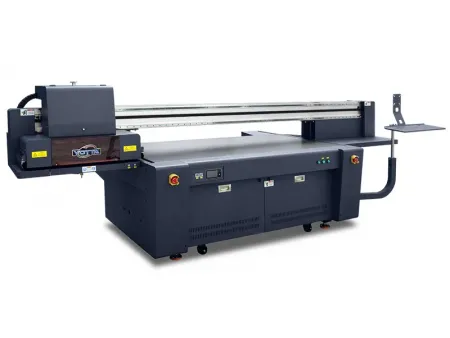

YD-P10R6 LED UV Flatbed Printer

with Ricoh-Gen6 grey level Piezo printhead

Our latest UV flatbed printer, featuring the Ricoh Gen6 printhead is designed to take your printing projects to the next level. This printing device is engineered for efficiency and accuracy, offering a range of 4-8 colors and achieving a remarkable resolution of 600 x 2400dpi. By enhancing ink output by 80% and reducing printing times by half, it ensures your projects are completed faster without compromising on quality. Capable of accommodating materials up to 130mm thick, it is the ideal choice for professionals seeking to produce vibrant, high-definition prints across a diverse range of applications. Elevate your printing capabilities with this sophisticated solution, designed to meet the demands of high-volume, quality-centric printing tasks.

Printing size: 1800×1000 mm (5.9×3.3 ft)
Printhead: Ricoh-Gen6 grey level Piezo print head
Printhead quantity: 2-8 pcs (4-8 colors optional)
Print resolution: 600×2400 dpi
UV curing system: LED UV lamp
Ink type: Original imported UV curable ink
Ink color: C, M, Y, K, LC, LM, White ink, Varnish (optional)
Interface mode: High speed USB
RIP software: Photoprint
Color management: International standard ICC
Input format: PDF, JPEG, TIFF, EPS, AI
Printer weight:1080kg
Printer size (L×W×H): 3950×1770×1400mm (12.9×5.9×4.6ft)
Packaging size (L×W×H): 4250×1970×1800mm (13.9×6.5×5.9ft)
Power supply: 220V/AC(±10%), 50/60 HZ, 4.8 kW
Working environment: Separate, less sunlight, ventilated workshop
Temperature: 18℃~30℃ (64℉~86℉)
Humidity: 30%~70% (non-condensing)
Ventilation equipment: suggest overhead exhaust fan (displacement 600 CFM)

Our advanced UV printing systems are suitable for a variety of industries, offering customized solutions that bring ideas to life:

• Home decoration industry: Used to print ceramic tiles, furniture, back walls, cupboards, ceilings, and home appliance panels with personalized designs that embellish living spaces.
• Advertising industry: Create posters, backlit displays, billboards, banners, PVC cards, KT boards, signage, and PP boards that capture attention and convey messages vividly.
• Glass industry: Beautify spaces with art glass, glass partitions, sliding doors, background walls, and frosted glass, all customized to your design needs.
• Packaging industry: Suitable for printing paper, wood, metal, PVC, and leather packaging with unique designs that adds value to your products.

Our printer is not just versatile in its applications but also in the materials it can work with. The possibilities are endless, from glass and phone cases to back wall grounds and ceramic tiles. Are you interested in seeing the quality for yourself? Contact us now for free print samples and discover how our printing solutions can elevate your projects.

• Glass
• Ceramic Tile
• Canvas
• Wallpaper
• Leather
• Acrylic

• Easy to refill ink system
  Our UV flatbed printer features a newly designed ink tank that simplifies refills and maintenance.
• Automatic thickness detection
  The printer is capable of detecting the thickness of the material you're printing on, removing the need for manual checks and reducing the risk of errors.
• Smart anti-collision technology
  Equipped with a sensitive anti-collision system to protect the printheads and the machine by stopping automatically if it encounters any obstacles.
• Flexible suction platform
  The printing equipment has a customizable suction platform divided into six areas (ABCDEF), offering a versatile setup for printing on various media sizes.
• Ink level display with alert
  An innovative feature that allows you to monitor ink levels visually and audibly, reminding you to refill the ink tanks to ensure continuous production.
• Ink thermostat
  This system maintains the ink at an ideal viscosity in cooler temperatures and adjusts to the room's temperature, guaranteeing consistent print quality.
• Dual negative pressure system
  Features a highly stable dual negative pressure system for precise ink flow, including a separate system for white and varnish inks.
• Versatile Color Printing
  With CMYK, Lc, Lm, white ink, and varnish options, the printer supports various colors, producing 3D, embossed, and glossy finishes.
• Eco-friendly UV LED curing
  The UV LED curing system dries ink rapidly and saves energy, making it an environmentally friendly choice with a long lifespan.
